Concrete reinforcement mesh for bridge and pier construction application
Concrete reinforcement mesh used on bridge and pier construction, It's not only main improve bridge durable year but also can avoid earthquake and crack. Using concrete r...
PRODUCT DESCRIPTION
Concrete reinforcement mesh used on bridge and pier construction, It's not only main improve bridge durable year but also can avoid earthquake and crack. Using concrete reinforcement mesh in bridge construction, it get a reinforced purpose.
Heyou wire mesh factory has lots of stocks for bridge and pier reinforcement mesh. We can ship the products within 7days.

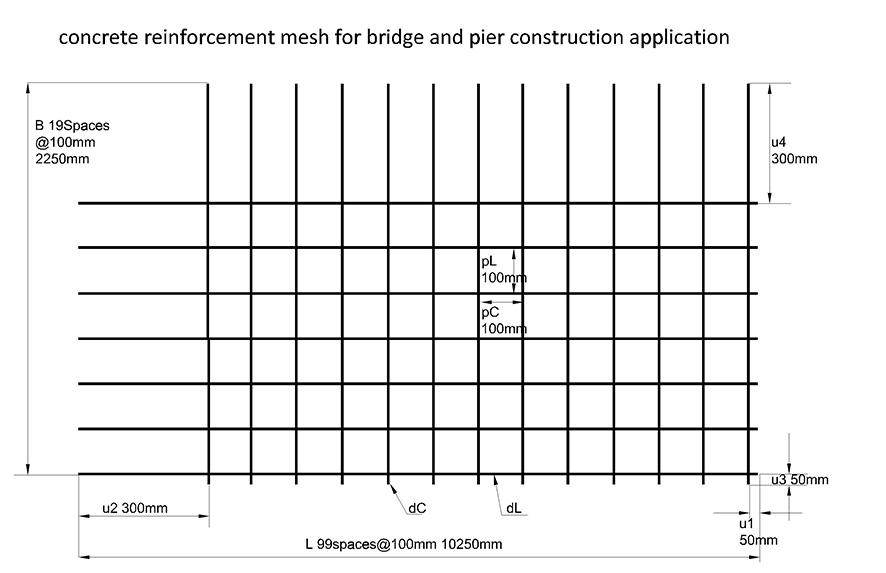

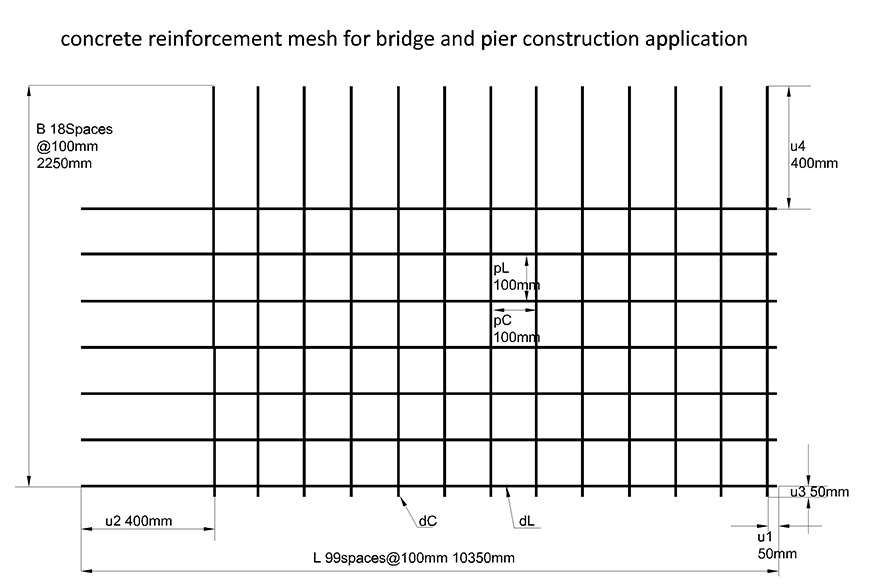

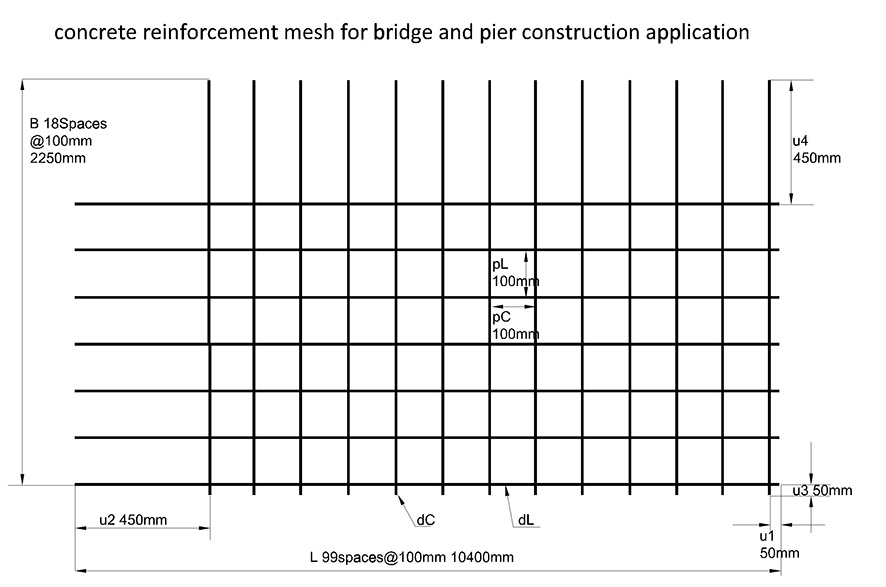

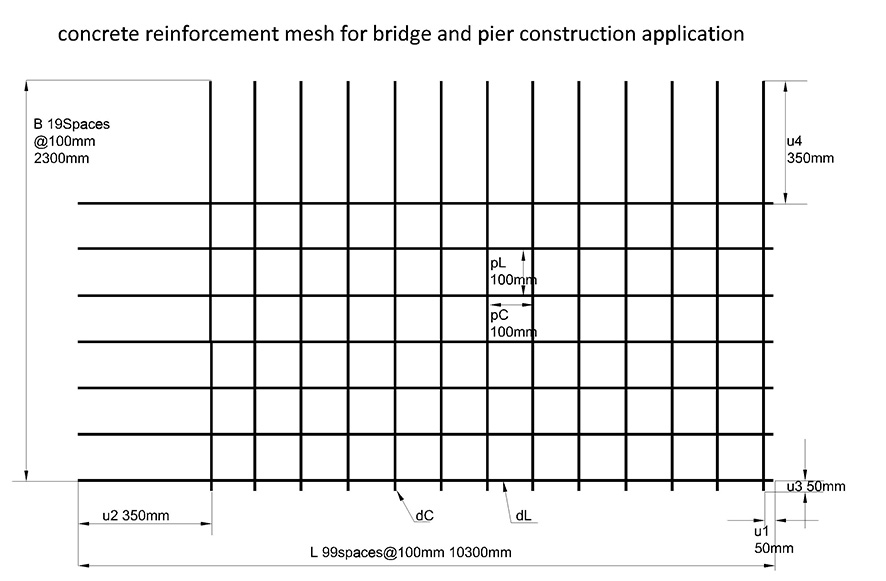

The skatch of bridge using concrete reinforcement mesh as below:
 | |
 | |
 | |
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
The specification of Bridge concrete reinforcement mesh:
| Item No. | mesh type | mesh model No. | Dimension of Mesh | Overhang Length | per sheet mesh | Weight of Mesh (kg) | ||||||
| wire diameter (mm) | Mesh space | B(mm) | L(mm) | Longitudinal bar(mm) | Cross Bar(mm) | Number of longitudinal bars | Number of transverse bars | |||||
| u1 | u2 | u3 | u4 | |||||||||
| 1 | QW-1 | 7 | 100 | 2250 | 10250 | 50 | 300 | 50 | 300 | 20 | 100 | 129.9 |
| 2 | QW-2 | 8 | 100 | 2300 | 10300 | 50 | 350 | 50 | 350 | 20 | 100 | 172.2 |
| 3 | QW-3 | 9 | 100 | 2250 | 10350 | 50 | 400 | 50 | 400 | 19 | 100 | 210.4 |
| 4 | QW-4 | 10 | 100 | 2250 | 10350 | 50 | 400 | 50 | 400 | 19 | 100 | 260.2 |
| 5 | QW-5 | 11 | 100 | 2250 | 10400 | 50 | 450 | 50 | 450 | 19 | 100 | 319 |
