A60 / A65 / A70 / A76 / A82 / A90 / A120 ribbed reinforced mesh
Heyou wire mesh can make the ribbed reinforced mesh complicance with Osterreichische Norm ON B4200-7.
PRODUCT DESCRIPTION
Heyou wire mesh can make the ribbed reinforced mesh complicance with Osterreichische Norm ON B4200-7.
From mesh type A60 to A120, the longitude and cross wire is different, the mesh space is 100mm x 300mm. the sheet size of ribbed reinforced mesh is 2400mm x 6000mm. The mesh hole is a rectangle shape. It's popular to use on flooring slab, dividing walls for non loading bearing partitions, construction footing foundation, bridge and pier,colomun,road and highway foundation etc.

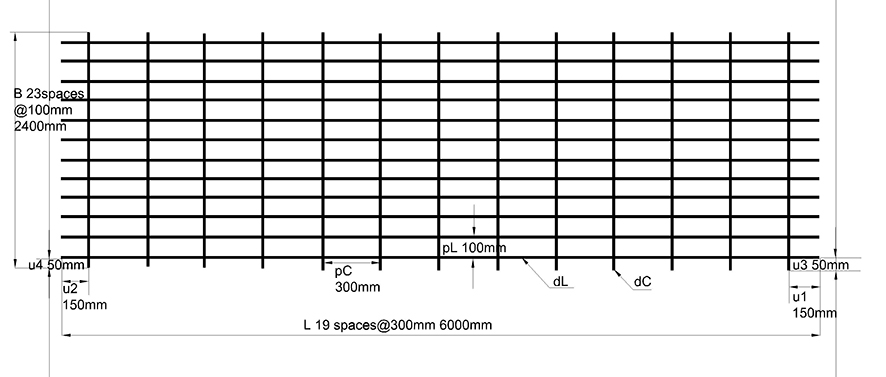

The drawing of ribbed reinforced mesh as below:
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
The specification of ribbed reinforced mesh conformance to Osterreichische Norm ON B4200-7
| mesh type | diameter of wire (mm) | Pitch of wires (mm) | Dimension of Mesh | Area of Mesh(sqmm) | Per meter area sqm/m | Weight of Mesh(kg) | Mass (kg/sqm) | ||||
| dL | dC | pL | pC | B(mm) | L(mm) | long | cross | ||||
| A60 | 6 | 4.6 | 100 | 300 | 2400 | 6000 | 14.4 | 283 | 55 | 38.208 | 2.65 |
| A65 | 6.5 | 5 | 100 | 300 | 2400 | 6000 | 14.4 | 332 | 65 | 44.832 | 3.113 |
| A70 | 7 | 5.5 | 100 | 300 | 2400 | 6000 | 14.4 | 385 | 79 | 52.464 | 3.643 |
| A76 | 7.6 | 6 | 100 | 300 | 2400 | 6000 | 14.4 | 454 | 94 | 61.92 | 4.3 |
| A82 | 8.2 | 6.5 | 100 | 300 | 2400 | 6000 | 14.4 | 528 | 111 | 72.24 | 5.017 |
| A90 | 9 | 7 | 100 | 300 | 2400 | 6000 | 14.4 | 636 | 128 | 86.352 | 5.997 |
| A100 | 10 | 7.6 | 100 | 300 | 2400 | 6000 | 14.4 | 785 | 151 | 105.936 | 7.357 |
| A120 | 12 | 9.3 | 100 | 300 | 2400 | 6000 | 14.4 | 1131 | 226 | 153.456 | 10.657 |
| AQ46 | 4.6 | 4.6 | 100 | 100 | 2400 | 6000 | 14.4 | 166 | 166 | 37.44 | 2.6 |
| AQ50 | 5 | 5 | 100 | 100 | 2400 | 6000 | 14.4 | 196 | 196 | 44.352 | 3.08 |
| AQ55 | 5.5 | 5.5 | 100 | 100 | 2400 | 6000 | 14.4 | 238 | 238 | 53.856 | 3.74 |
| AQ60 | 6 | 6 | 100 | 100 | 2400 | 6000 | 14.4 | 283 | 283 | 63.963 | 4.44 |
| AQ65 | 6.5 | 6.5 | 100 | 100 | 2400 | 6000 | 14.4 | 332 | 332 | 74.88 | 5.2 |
| AQ70 | 7 | 7 | 100 | 100 | 2400 | 6000 | 14.4 | 385 | 385 | 86.976 | 6.04 |
| AQ76 | 7.6 | 7.6 | 100 | 100 | 2400 | 6000 | 14.4 | 454 | 454 | 102.528 | 7.12 |
| AQ82 | 8.2 | 8.2 | 100 | 100 | 2400 | 6000 | 14.4 | 528 | 528 | 119.52 | 8.3 |
| AQ90 | 9 | 9 | 100 | 100 | 2400 | 6000 | 14.4 | 636 | 636 | 143.712 | 9.98 |
| AQ100 | 10 | 10 | 100 | 100 | 2400 | 6000 | 14.4 | 785 | 785 | 117.696 | 12.34 |

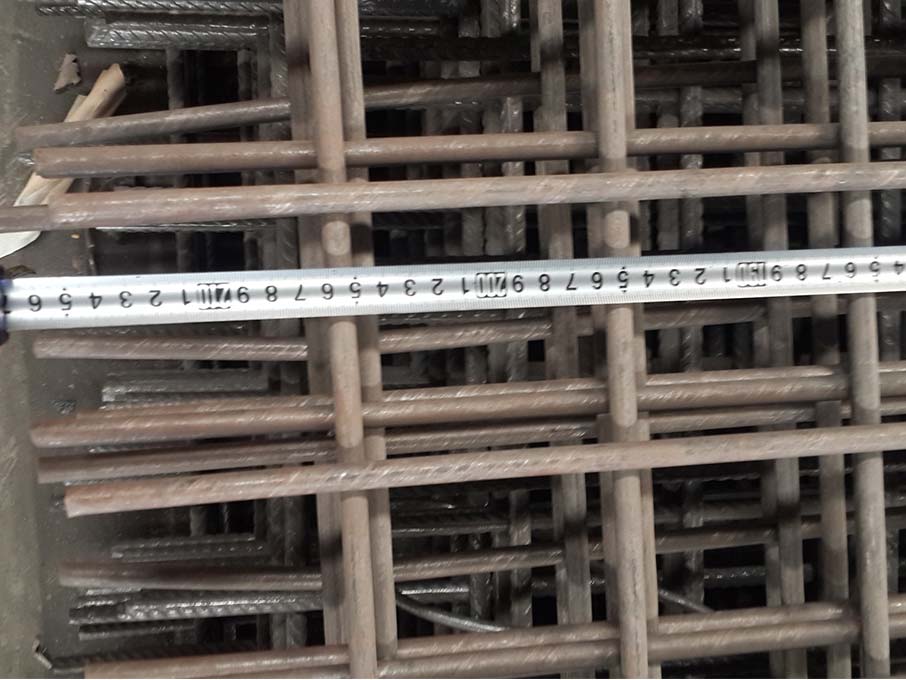

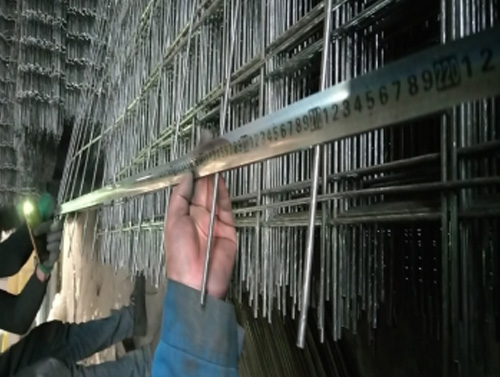

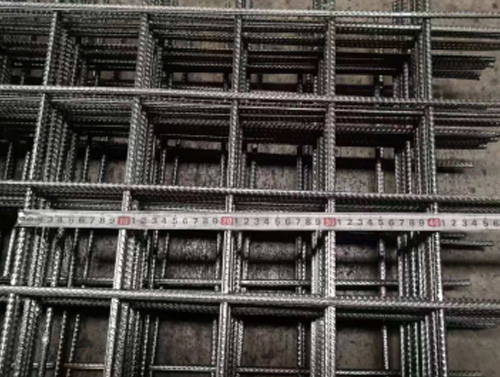

The ribbed reinforced mesh details image as below:
 |  |

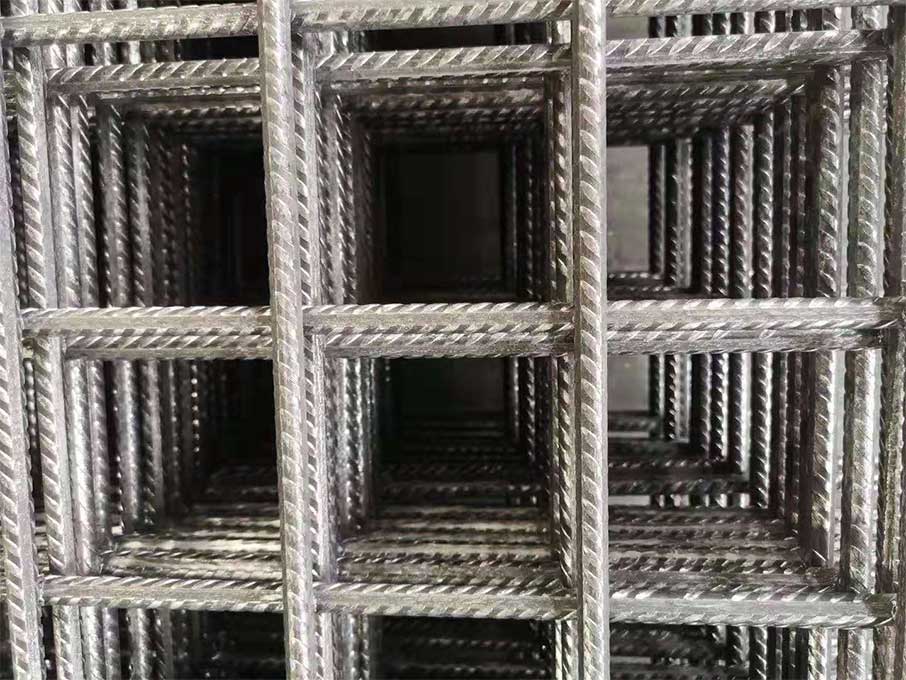

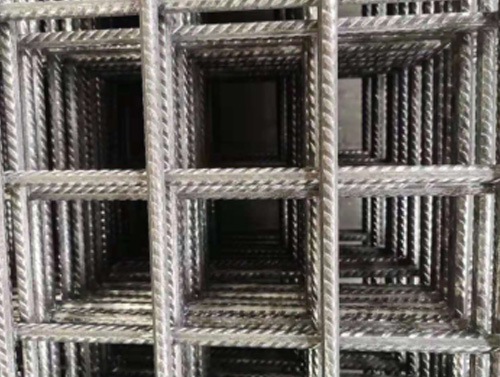

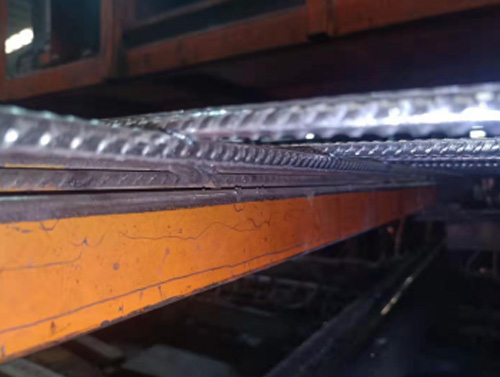

| Clearly and visible 3 faces ribs on the surface | Stong and firmly weld spot |
 |  |
| Uniform mesh space | Accurate mesh sheet size |
The connected way of ribbed reinforced mesh in project

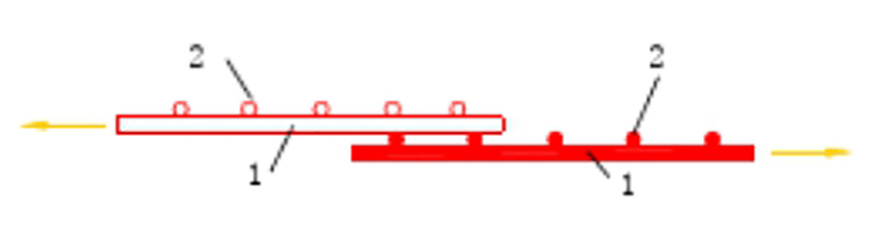

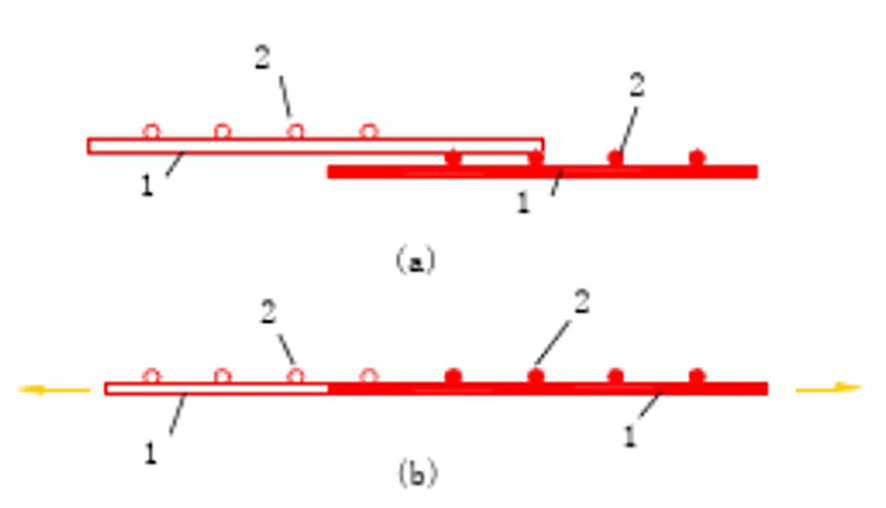

 | Overlap connection |
 | Nesting |
 | Back overlapping |
How to produce ribbed reinforced mesh?
 |  |  |

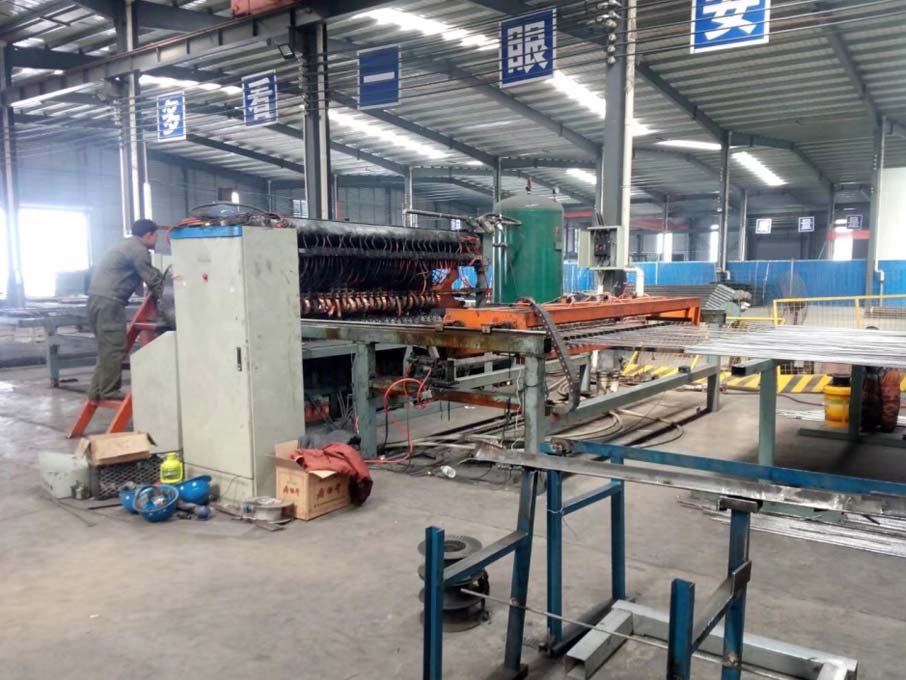

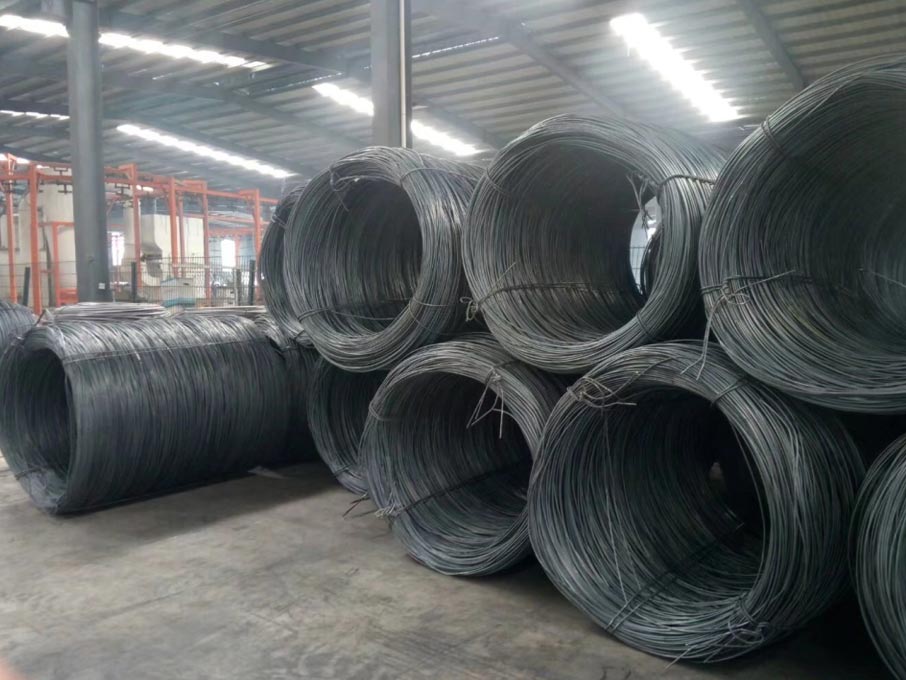

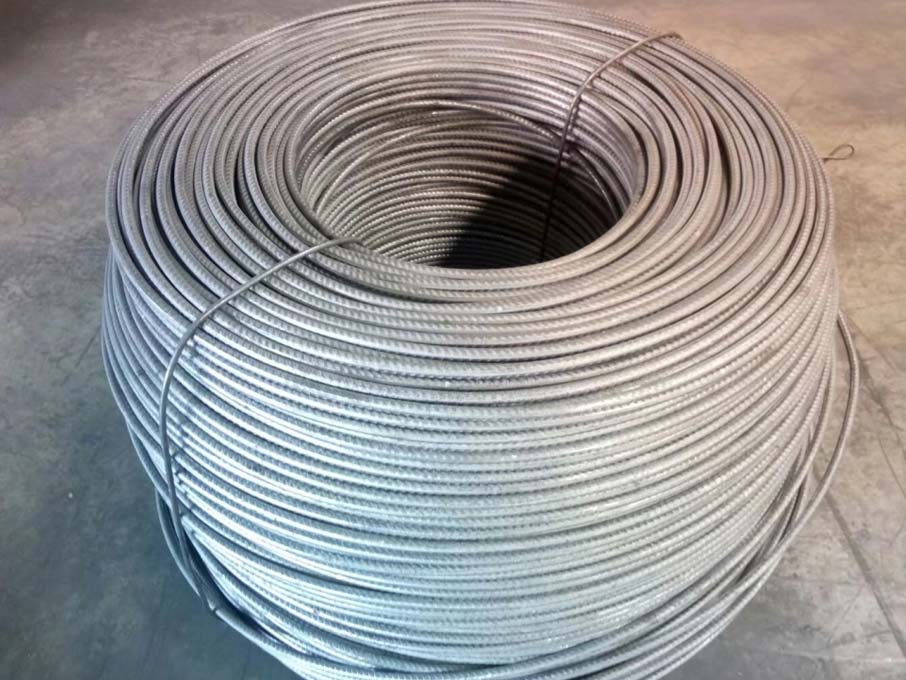

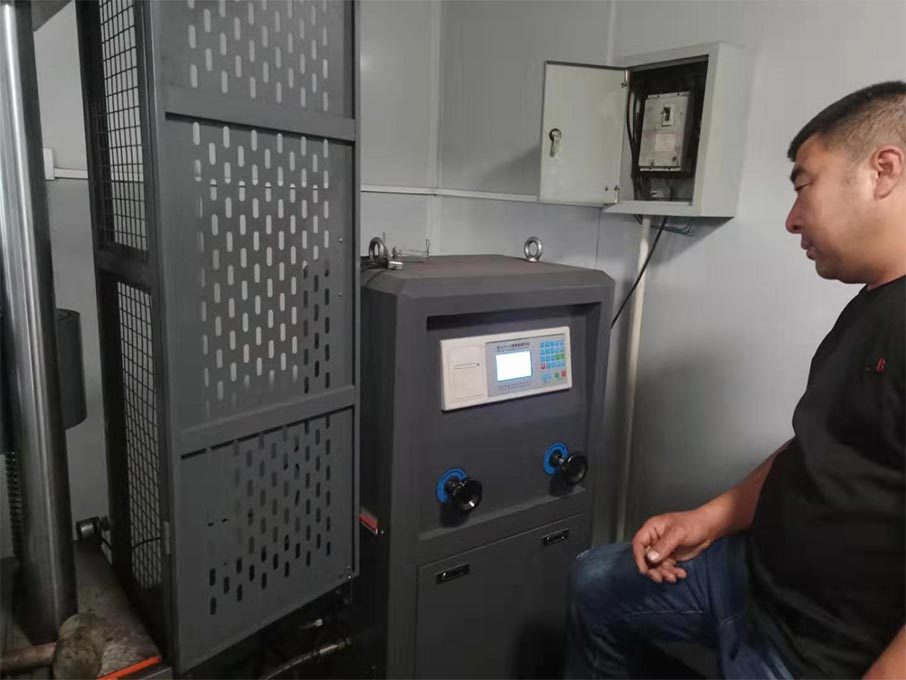

| First, Purchase the raw material from Steel factory according to per contract | Seond, the QC person inspects raw material properties in chemical and mechnical as per contract | Third, Draw to the reqired wire diameter to be smooth round wire or ribbed wire with 3 faces indentation |
 |  |  |

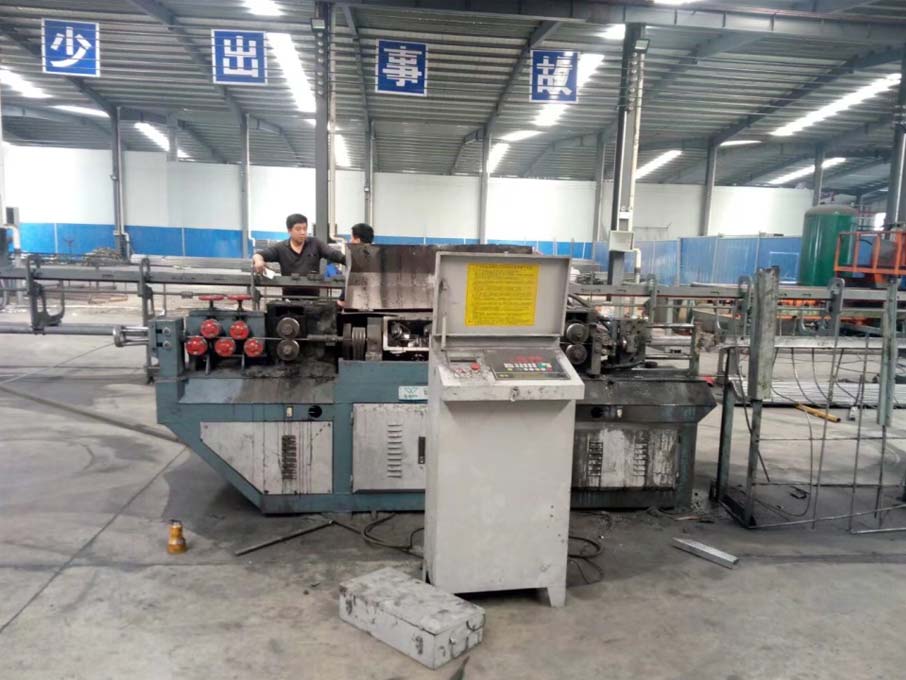

| Fourth, Cutting and straighten wire length as per contract | Fifth, welded on Automatic electric resistance machine which be controlled by computer according to per contract | Finally, after finished producing, messure the wire diameter, mesh space, width length and mechnical propertes as per contract. |
The Packing and shipment of ribbed reinforced mesh
 |  |

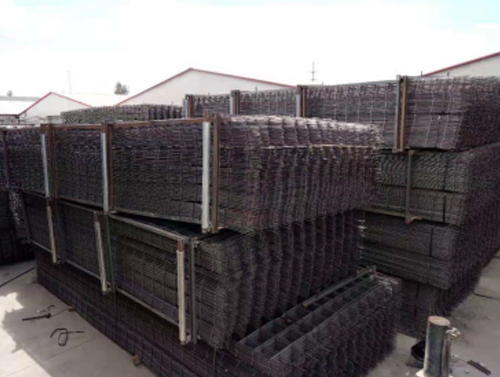

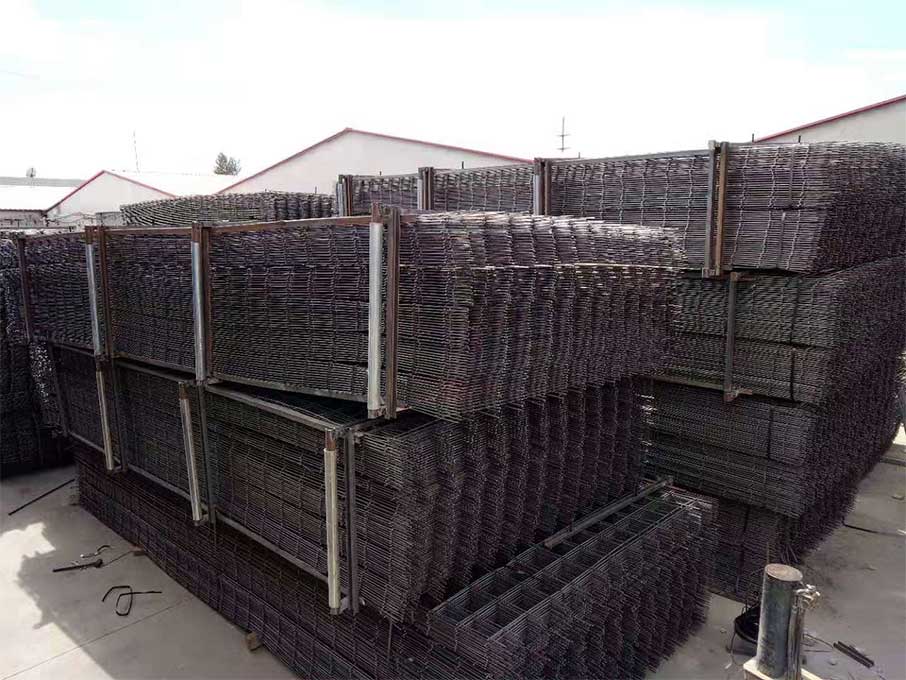

| Pallet packing | shipment |

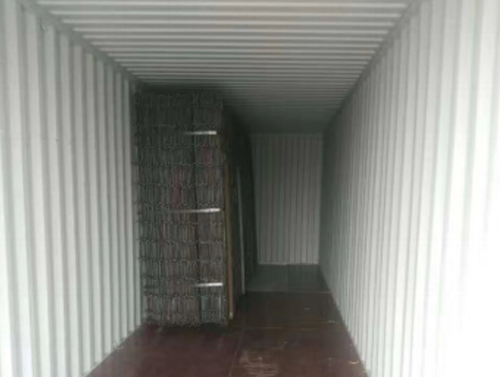

Notes: About the Pallet packing is suit for 2.4m x 6m sheet size,but our export sheet size is 2.2m x 5.8m in 40HQ container.Because the 40HQ container's length is 12m, width is 2.35m, heigh is 2.68m. If the size change to 2.2m x5.8m, the cost will be reduced about 1000USD.
