PST 10 / PST 20 / PST 25 / PST 30 / PST 35 / PST 45 / PST 50 / PST 25C / PST 40C / PST 65C reinforced mesh / steel bar welded mesh
Normes Francaises NF A 35 016-1996 Reinforced mesh is rectangle space. The material and welding procedure is same as PPAF R / PPAF C / PPAF V BRC Mesh ...
PRODUCT DESCRIPTION
Normes Francaises NF A 35 016-1996 Reinforced mesh is rectangle space. The material and welding procedure is same as PPAF R / PPAF C / PPAF V BRC Mesh / reinforcement meshes. It just has different size with them. The mechenical porperty and chemical components are same, there isn't change any more. This Normes is very popular in the international business. Our factory has enough stocks, welcome new and old customers inquiry about it.

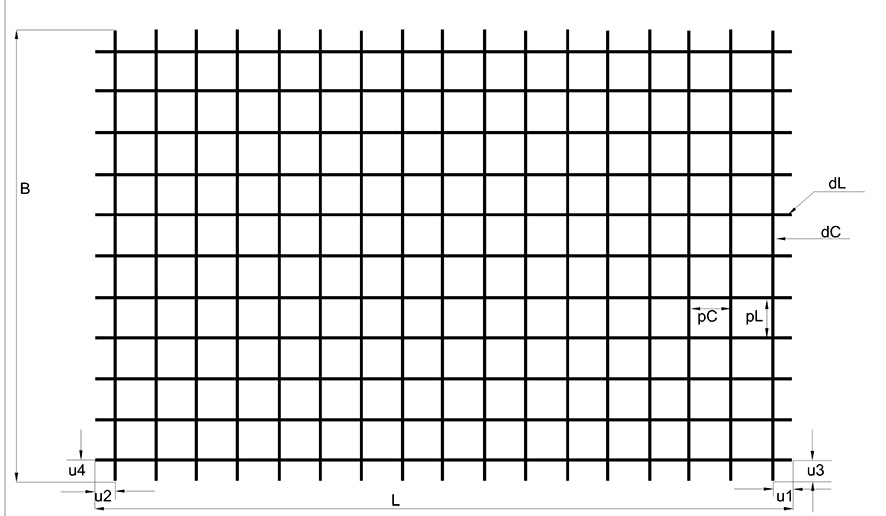

The skatch of reinforced mesh / steel bar welded mesh
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
The specfication of reinforced mesh comformance with Normes Francaises NF A 35 016-1996
| mesh type | diameter of wire (mm) | Pitch of wires (mm) | Dimension of Mesh | Area of Mesh (sqmm) | Per meter area sqm/m | Weight of Mesh (kg) | Mass (kg/sqm) | ||||
| dL | dC | pL | pC | B(mm) | L(mm) | long | cross | ||||
| PPAF R | 4.5 | 4.5 | 200 | 300 | 2400 | 3600 | 8.64 | 80 | 53 | 9 | 1.042 |
| PPAF C | 4.5 | 4.5 | 200 | 200 | 2400 | 3600 | 8.64 | 80 | 80 | 10.8 | 1.25 |
| PPAF V | 4.5 | 4.4 | 200 | 160 | 2400 | 3200 | 7.68 | 80 | 99 | 9.6 | 1.25 |
| PST 10 | 5.5 | 5.5 | 200 | 200 | 2400 | 4800 | 11.52 | 119 | 119 | 21.542 | 1.87 |
| PST 20 | 6 | 7 | 150 | 300 | 2400 | 6000 | 14.4 | 188 | 128 | 35.808 | 2.487 |
| PST 25 | 7 | 7 | 150 | 300 | 2400 | 6000 | 14.4 | 257 | 257 | 43.488 | 3.02 |
| PST 30 | 6 | 7 | 100 | 300 | 2400 | 6000 | 14.4 | 385 | 128 | 46.464 | 3.227 |
| PST 35 | 7 | 7 | 100 | 300 | 2400 | 6000 | 14.4 | 385 | 128 | 57.984 | 4.027 |
| PST 45 | 9 | 8 | 150 | 300 | 2400 | 6000 | 14.4 | 424 | 168 | 66.864 | 4.643 |
| PST 50 | 8 | 8 | 100 | 300 | 2400 | 6000 | 14.4 | 503 | 168 | 75.84 | 5.267 |
| PST 60 | 9 | 8 | 100 | 200 | 2400 | 6000 | 14.4 | 636 | 251 | 100.296 | 6.965 |
| PST 25C | 7 | 7 | 150 | 150 | 2400 | 6000 | 14.4 | 257 | 257 | 57.984 | 4.027 |
| PST 40C | 7 | 7 | 100 | 100 | 2400 | 6000 | 14.4 | 385 | 385 | 86.976 | 6.04 |
| PST 65C | 9 | 9 | 100 | 100 | 2400 | 6000 | 14.4 | 636 | 636 | 143.712 | 9.98 |
Reinforced Mesh Panel Application
1. Basic engineering
PST series steel mesh is widely used in building foundation projects. In raft foundations, placing reinforced mesh panels within the concrete pouring layer can effectively disperse the load and improve the stability and seismic performance of the foundation. For high-rise buildings or bridge projects, it is also often used to reinforce pile foundations or foundation slabs to enhance load-bearing capacity.
2. Structural Engineering
Reinforced mesh panels play an important role in walls, floors and bridges of concrete structures. They can enhance the overall strength of the structure, reduce cracks and deformation, and ensure the stability and durability of the structure. During the construction of concrete walls, embedding steel mesh panels into the walls can effectively improve the shear strength and seismic performance.
3. Prefabricated components
PST series steel mesh is often used in the manufacture of precast concrete components. During the production process, placing the reinforced mesh panel into the concrete mold can enhance the overall strength and stability of the component and improve the quality and service life of the product.
4. Floor and parking lot
For large-area industrial floors and parking lots, using reinforced mesh panels can improve the load-bearing capacity and durability of the ground, reduce ground cracking and settlement, and extend the service life. The laying method of the steel mesh can be designed according to the floor usage and load requirements to ensure the stability and safety of the ground.
Heyou Wire Mesh are professional factory for reinforced mesh. We're real manufacturer, choose us, cut down the middleman profit to get the most favorable price and reduce project cost. Contact us to learn more about our products.
