Reinforcement steel mesh plays a critical role in strengthening concrete structures, ensuring their durability and load-bearing capacity. One of the key factors in ensuring that the reinforcement mesh performs its job efficiently is proper installation, including the correct lap length for overlapping steel bars. The minimum lap for reinforcement steel mesh is an important aspect of construction that impacts the overall strength of the structure. In this article, we’ll explore the minimum lap requirements for steel mesh, how it affects construction, and why it's crucial for safety and stability.
Understanding Reinforcement Steel Mesh
Reinforcement steel mesh, commonly used in concrete construction, consists of a network of steel wires or rods arranged in a grid pattern. It is typically used to provide tensile strength to the concrete, which is otherwise weak under tension. Steel mesh is especially useful in slab, floor, and wall reinforcement, where it enhances the concrete’s ability to resist cracking and deformation due to stress.
The steel mesh is fabricated in various forms and sizes, with its thickness and grid spacing depending on the specific structural requirements of the project. Proper installation of the mesh is vital to ensure that the concrete and steel bond together effectively, providing the necessary strength and stability. One important aspect of this installation is the lap length.
What is a Lap in Reinforcement Steel Mesh?
A lap refers to the overlap of two pieces of reinforcement steel bars or mesh to ensure continuity in the reinforcement. In concrete structures, it’s common to find areas where the length of a single piece of steel reinforcement is insufficient to cover the required span. In such cases, the steel bars or mesh are overlapped, and the strength of the connection between them is essential for maintaining structural integrity.

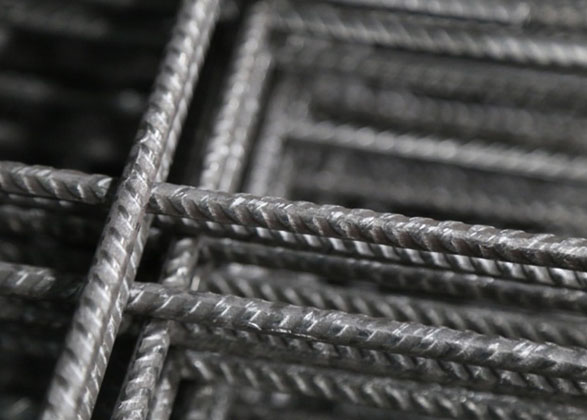

Threaded Reinforcing Steel Mesh
The purpose of a lap is to transfer the load from one piece of steel reinforcement to another, maintaining the overall strength of the mesh. However, the lap length must be properly calculated to prevent weak spots in the concrete that could compromise the structure.
What is the Minimum Lap for Reinforcement Steel Mesh?
The minimum lap length for reinforcement mesh is typically specified by building codes and depends on several factors, including the diameter of the reinforcement bars and the type of mesh used. In general, the lap length is calculated based on a percentage of the bar's diameter, which ensures that there is enough overlap to achieve a secure bond between the bars.
As a rule of thumb, the minimum lap length is generally 40 times the diameter of the reinforcement bar (or mesh). For example, if you're using a 12mm diameter bar, the minimum lap length would be approximately 480mm (12mm x 40). However, this can vary based on specific project requirements, local building codes, and the type of reinforcement used.
Factors Affecting the Minimum Lap Length
The required lap length can be influenced by several factors, including:
Bar Diameter: Larger bars require longer lap lengths to ensure proper load transfer between the bars.
Concrete Strength: Higher-strength concrete may allow for a shorter lap, as it can bond more effectively with the reinforcement.
Environmental Conditions: In aggressive environments, such as coastal areas with high humidity or exposure to chemicals, the lap length may need to be increased to ensure durability.
Type of Steel Reinforcement: Different types of reinforcement, such as welded wire mesh or rebar, may have different lap length requirements.
These factors must be considered when determining the correct lap length to ensure the structural safety of the concrete element.
Importance of Proper Lap Length
Proper lap length is crucial for the strength and durability of concrete structures. Insufficient lap lengths can lead to a failure in load transfer between the reinforcement bars, creating weak spots in the concrete. This can ultimately result in cracks, shifts, and even catastrophic structural failure. By adhering to minimum lap length requirements, builders ensure that the reinforcement is continuous and capable of handling the forces applied to the structure over time.
In addition, adequate lap lengths contribute to the bond between the concrete and steel, which is vital for the overall performance of the structure. A well-executed lap will prevent the reinforcement from pulling out of the concrete, ensuring that the steel continues to provide tensile strength as intended.
Common Mistakes in Lap Length and Their Consequences
One of the most common mistakes in reinforcement installation is failing to meet the minimum lap length requirements. If the lap is too short, the reinforcement may not be adequately connected, reducing its ability to transfer loads effectively. This can lead to issues such as:
Cracking: Short laps can result in cracks in the concrete as the reinforcement fails to provide the necessary support.
Weak Joints: Improper laps can cause weak joints in the structure, which may collapse under stress.
Increased Maintenance Costs: Structural weaknesses caused by insufficient lap lengths can lead to frequent repairs and maintenance, increasing the long-term cost of the building.
For these reasons, it is critical for engineers and contractors to strictly follow the guidelines for lap length to avoid such costly mistakes.
Frequently Asked Questions (FAQ)
1. Can the lap length be reduced for smaller diameter bars?
In some cases, the lap length for smaller diameter bars can be reduced slightly, but it should still adhere to local building codes and regulations. Always consult with an engineer or refer to construction standards before making any adjustments.
2. What happens if the lap length is too short?
If the lap length is too short, the reinforcement bars may not properly transfer loads, leading to weak spots in the concrete. This can result in cracks, structural instability, and even potential failure of the structure under stress.
3. Can the lap length be too long?
While it's important to meet the minimum lap length requirements, excessively long laps can be inefficient and waste material. However, a longer lap is typically better than too short, as it ensures a stronger bond between the reinforcement bars.
4. How do environmental factors affect lap length?
Environmental factors, such as exposure to moisture, chemicals, or extreme weather conditions, can affect the durability of concrete structures. In aggressive environments, longer lap lengths may be required to ensure long-term performance and prevent corrosion or deterioration of the steel reinforcement.
5. Are there any alternatives to steel mesh reinforcement?
Yes, there are alternative reinforcement materials, such as fiberglass mesh or polymer composites, that may be used in certain applications. However, steel remains the most common and cost-effective choice for reinforcement in concrete structures due to its strength and reliability.
In conclusion, understanding and implementing the correct minimum lap for reinforcement steel mesh is crucial for ensuring the integrity and safety of concrete structures. By adhering to building codes and considering factors like bar diameter and environmental conditions, construction professionals can avoid costly mistakes and deliver stronger, more durable buildings.
