E5 / E6 / E7 / E8 / E9 / E10 / E11 / E12 / E14 / E16 cold drawn reinforcement mesh
Heyou wire mesh factory as expert for producing cold drawn reinforcement mesh. Which has widly application. The cold drawn reinforcement mesh main used on bridge reinforced a...
PRODUCT DESCRIPTION
E5 / E6 / E7 / E8 / E9 / E10 / E11 / E12 / E14 / E16 cold drawn reinforcement mesh

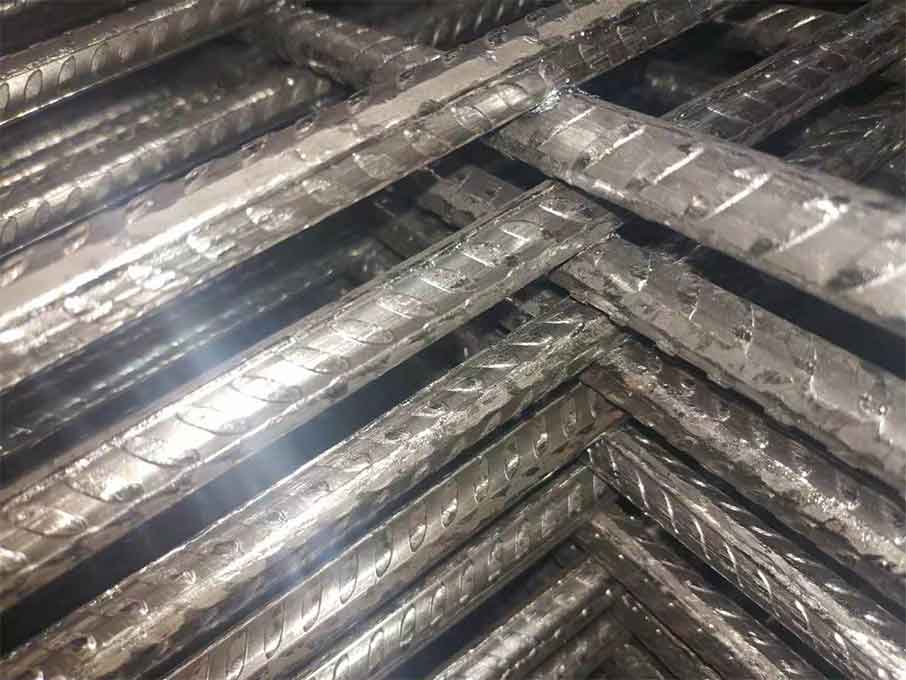

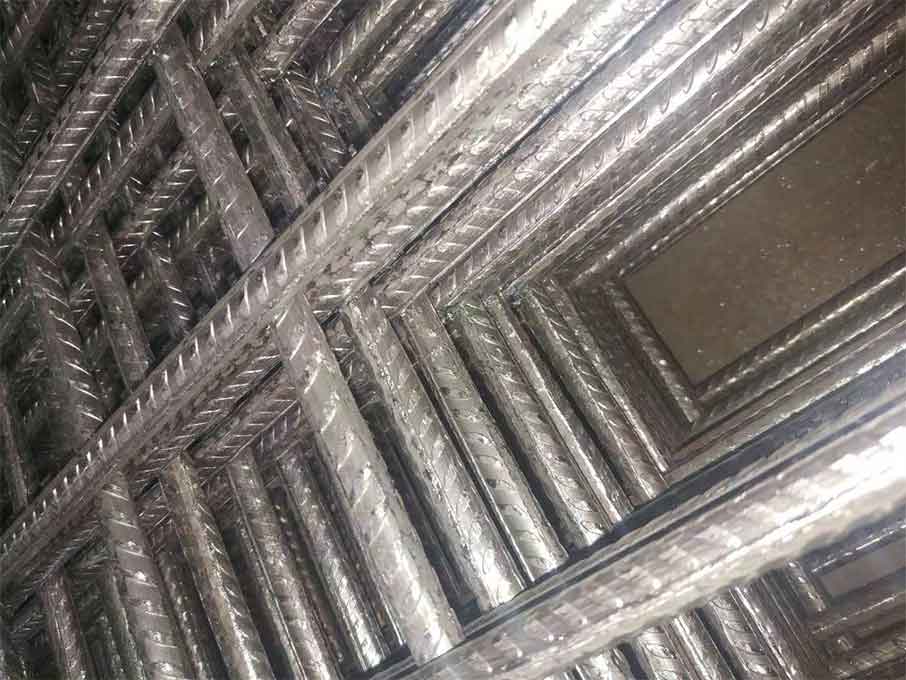

Heyou wire mesh factory as expert for producing cold drawn reinforcement mesh. Which has widly application. The cold drawn reinforcement mesh main used on bridge reinforced and support, highway and road subgrade, subway reinforcement, coal and mining support and reinforcement, tunnel support.

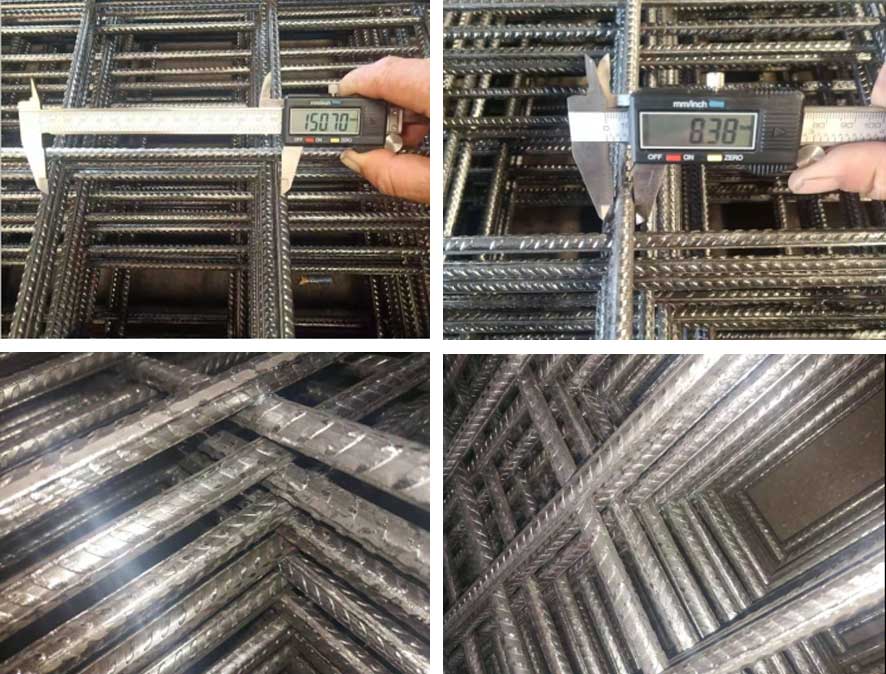

The wire diameter: 4-12mm
The mesh spacing: 150mm*150mm
Tensile strength:
360N/sqmm for cold drawn reinforcement mesh with ribbed.
320N/sqmm for cold drawn reinforcement mesh with plain.
The mesh size:
2.2m * 5.8m or 2.2m * 11.8m
The packing: 1tons more or less per bundle
HS code: 73142000

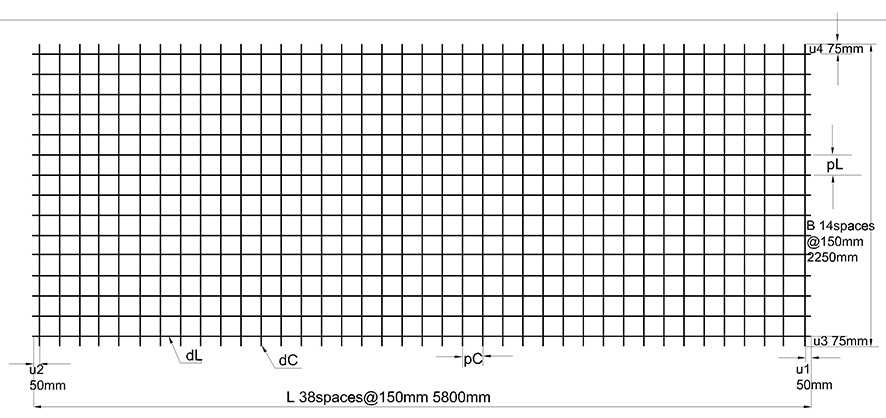

The cold drawn reinforcement plan
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
Cold drawn reinforcement mesh welded by logitudinal bars and transverse bas.
B1, b2 named spacing of cold drawn reinforcement mesh;
u1, u2, u3 u4 named overhang of cold drawn reinforcement mesh
L named length
B named width
The full of the cold drawn reinforcement mesh's specification:
| concrete reinforced Welded steel mesh | |||||||
| Mesh model | longitudinal reinforcement | transverse reinforcement | Weight (kg / m2) | ||||
| wire diameter (mm) | distance (mm) | area per meter(mm2 / m) | wire diameter (mm) | distance (mm) | area per meter(mm2 / m) | ||
| E12 | 12 | 150 | 754 | 12 | 150 | 754 | 11.84 |
| E11 | 11 | 150 | 634 | 11 | 150 | 634 | 9.95 |
| E10 | 10 | 150 | 523 | 10 | 150 | 523 | 8.22 |
| E9 | 9 | 150 | 423 | 9 | 150 | 423 | 6.66 |
| E8 | 8 | 150 | 335 | 8 | 150 | 335 | 5.26 |
| E7 | 7 | 150 | 257 | 7 | 150 | 257 | 4.03 |
| E6 | 6 | 150 | 189 | 6 | 150 | 189 | 2.96 |
| E5 | 5 | 150 | 131 | 5 | 150 | 131 | 2.03 |
How can we connected with two pieces of cold drawn reinforcement mesh in construction?
There are three ways to connect with two pieces of cold drawn reinforcement mesh: Overlap connection, nesting, and back overlapping.

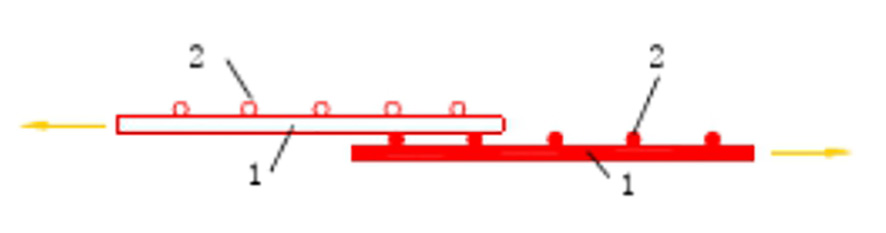

 | Overlap connection |

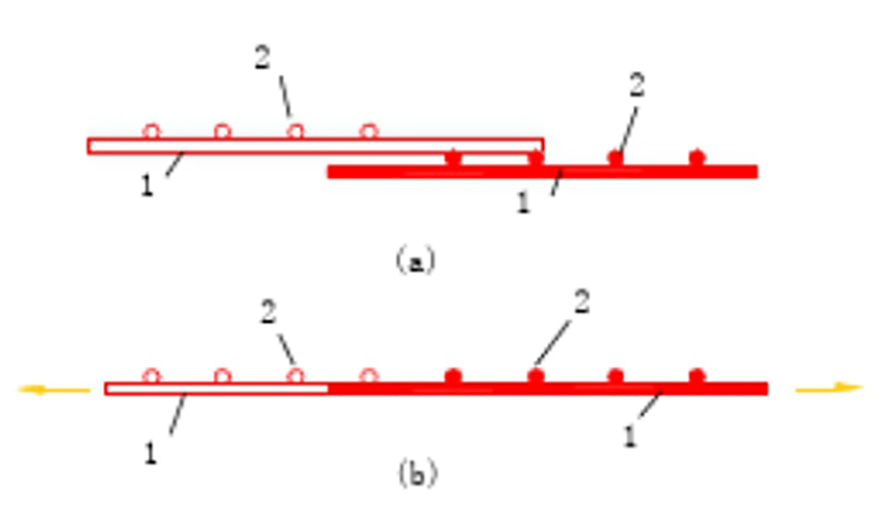

 | Nesting |

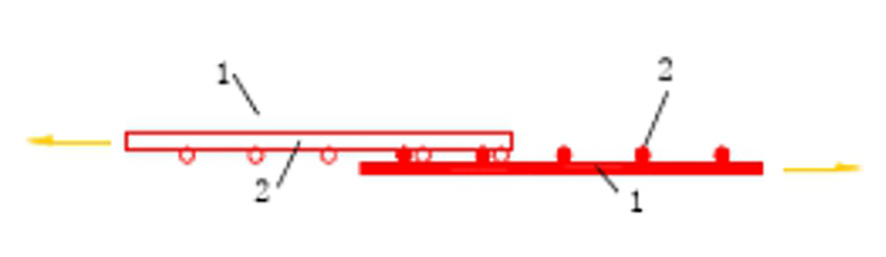

 | Back overlapping |
