PRODUCT DESCRIPTION
D5 / D6 / D7 / D8 / D9 / D10 / D11 / D12 / D14 / D16 welded mesh with ribbed
Welded mesh with ribbed is made by wire rod which steel No. is Q195, CRB550; CRB600H, Q235, HPB235, HPB300 and HRB400. The mesh of welded mesh with rinbbed is 100x100mm, the wire diameter is from 5mm to 12mm. Welded mesh with ribbed is according to national standard GB/T1499. 3-2010. The tensile strength's standard value of welded mesh with ribbed is 550N/sqmm. The tensile strength's design value of welded mesh ribbed is 360N/sqmm. The packing of welded mesh with ribbed is 1tons more or less per bundle with quality certificate. The mesh size is 2.2m * 5.8m or 2.2m * 11.8m, which size is fit to load in the 40HQ container can be 26tons more or less.
The details of welded mesh with ribbed display as below:
 |  |

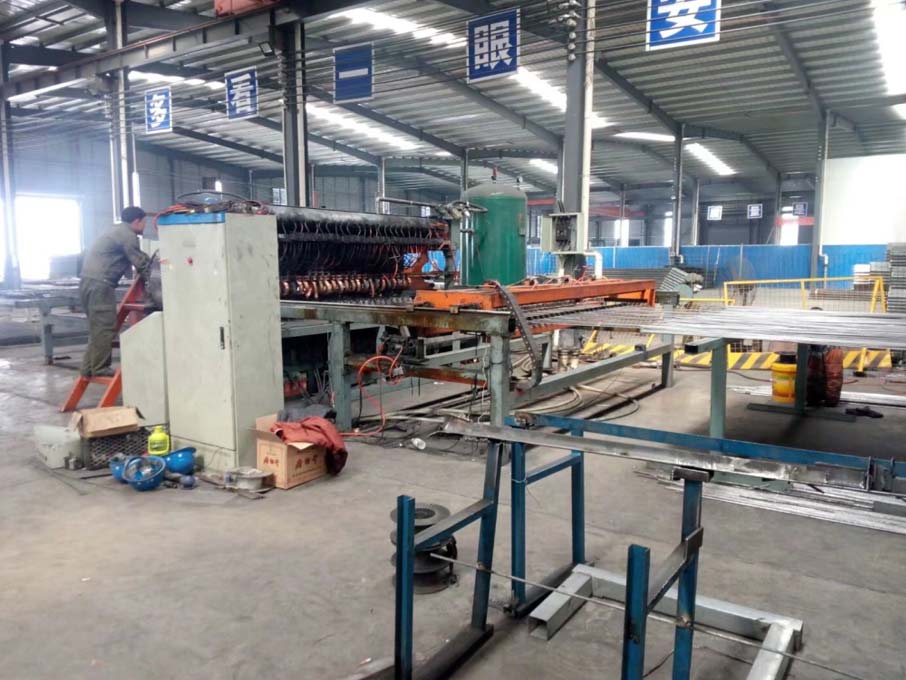

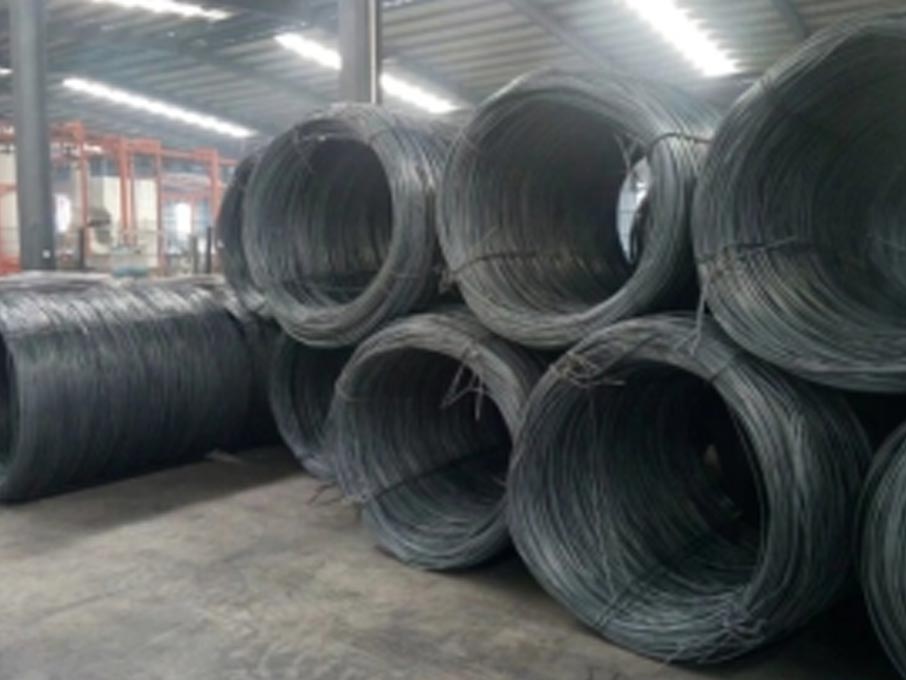

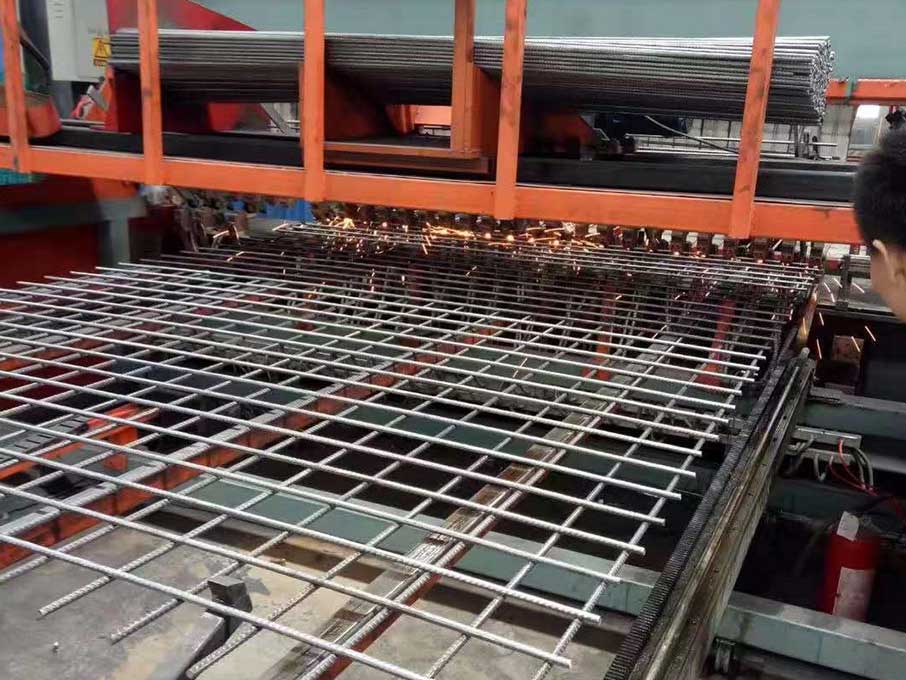

| Premium quality raw materials | Automatic and accurate machine, controled by computer |
 |  |

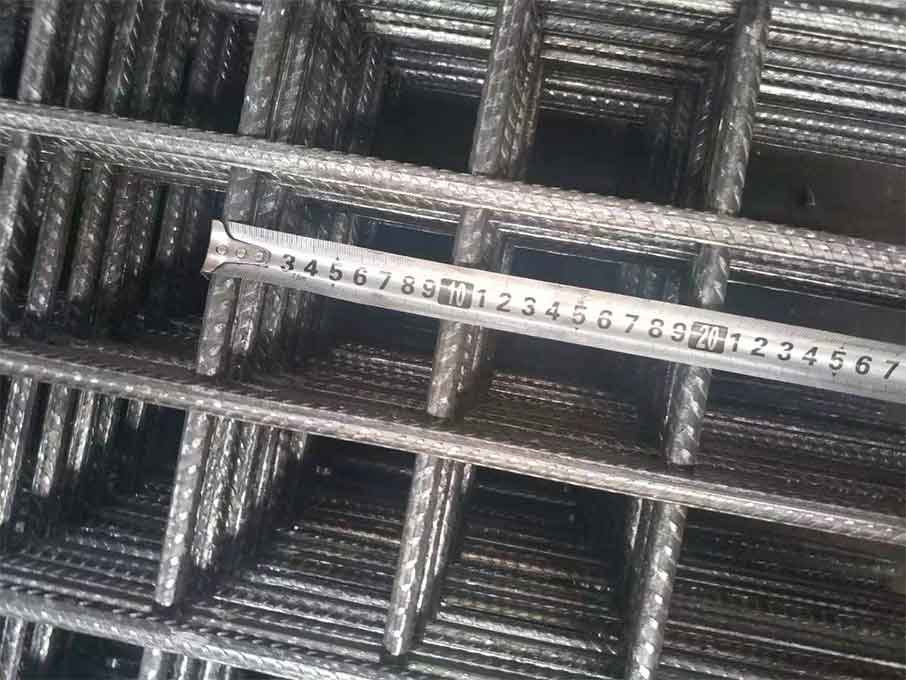

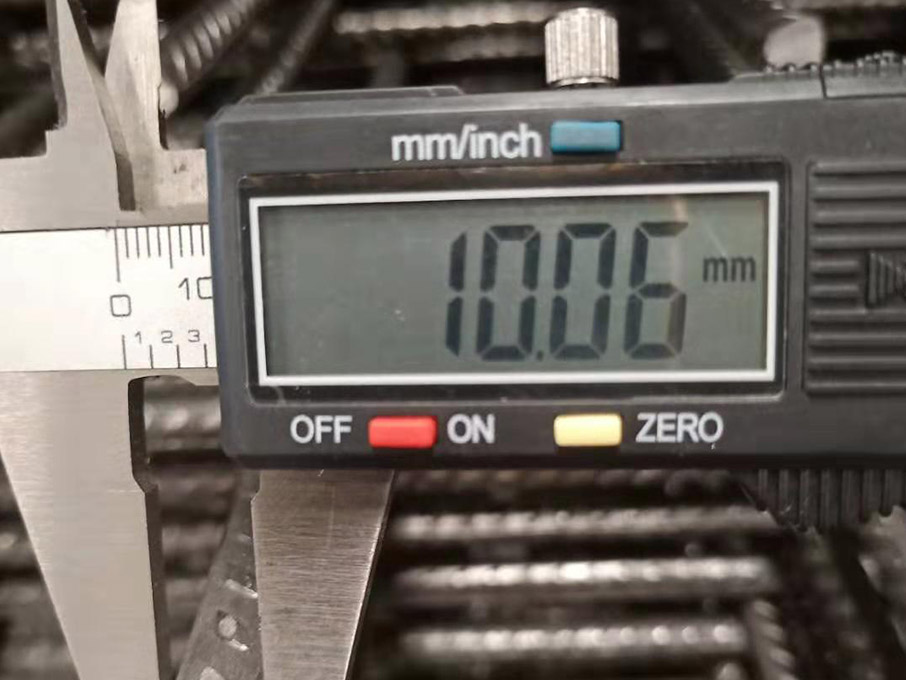

| Exactly wire diameter | Even mesh space |
|  |

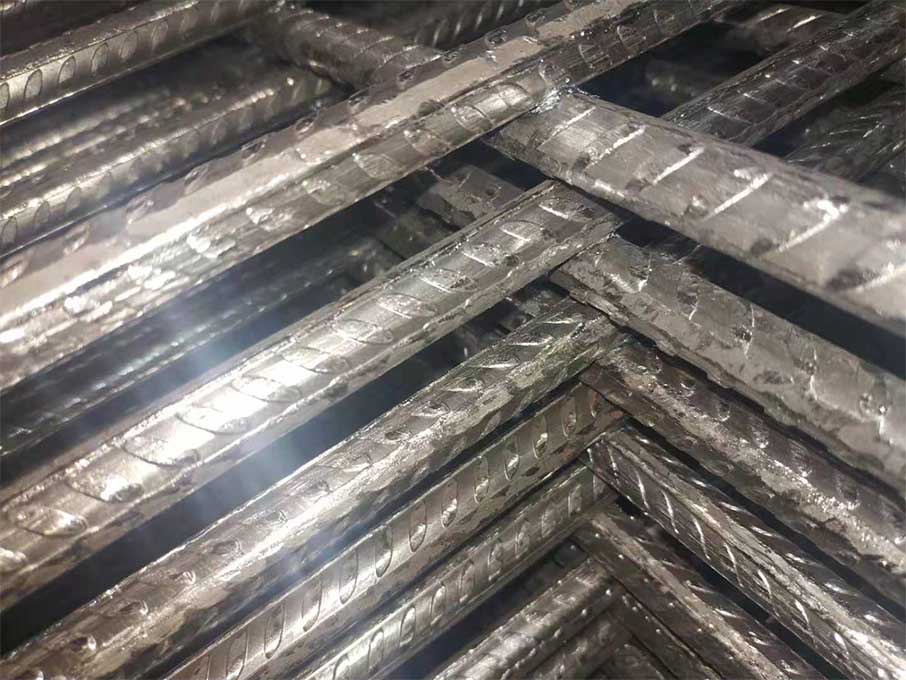

| Strong and firmly sold joint | Mesh surface is flat and smooth |
 |  |
| Complete production management system | Strictly QC inspection system |
The details of welded mesh with ribbed display as below:
The drawing of welded mesh with ribbed for D5 / D6 / D7 / D8 / D9 / D10 / D11 / D12 / D14 / D16:
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
the exact specfication of welded mesh with ribbed as below:
| welded mesh with ribbed | |||||||
| Mesh model | longitudinal reinforcement | transverse reinforcement | Weight (kg / m2) | ||||
| dL (mm) | pL (mm) | area per meter (mm2/m) | dC (mm) | pC (mm) | area per meter ( mm2 / m) | ||
| D12 | 12 | 100 | 1131 | 12 | 100 | 1131 | 17.75 |
| D11 | 11 | 100 | 950 | 11 | 100 | 950 | 14.92 |
| D10 | 10 | 100 | 785 | 10 | 100 | 785 | 12.33 |
| D9 | 9 | 100 | 635 | 9 | 100 | 635 | 9.98 |
| D8 | 8 | 100 | 503 | 8 | 100 | 503 | 7.9 |
| D7 | 7 | 100 | 385 | 7 | 100 | 385 | 6.04 |
| D6 | 6 | 100 | 283 | 6 | 100 | 283 | 4.44 |
| D5 | 5 | 100 | 196 | 5 | 100 | 196 | 3.08 |
Why choose Heyou's welded mesh with ribbed for using?

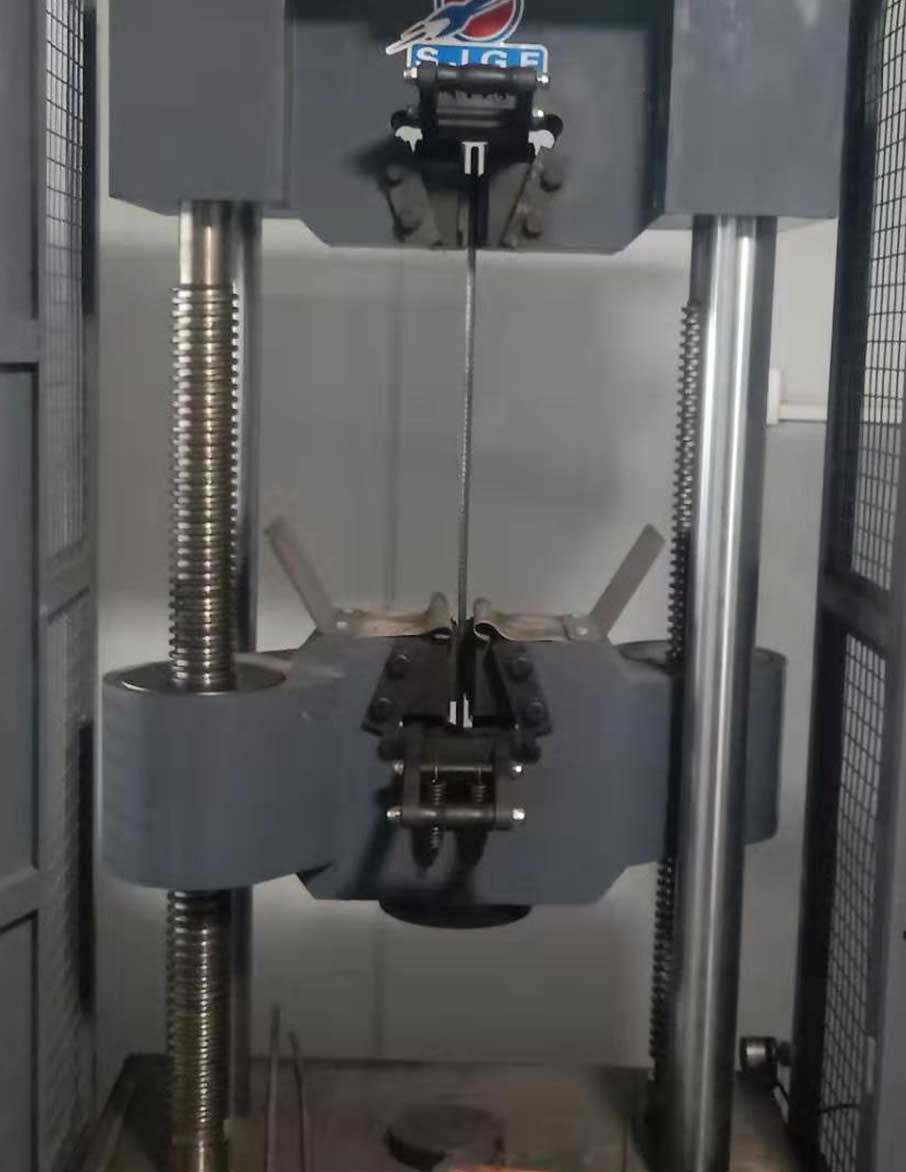

The welded mesh with ribbed is produced by Heyou wire mesh factory which has automatic and intelligent production line and a complete set of stictly quality controlled system. We inspected the quality from the Physical properties and chemical composition of material inspection, messure drawing wire diameter and mesh aperture, messure mesh size, to test whole a piece of mesh Tensile strength and welding spot strength. Then all of the inspection is conformed to per contract required, then the cargos can be shipped. Our products has many advantages: firstly, Heyou's welded mesh with ribbed can improve the project quality, speed up the progess of works and avoid the worker omitted binding, binded loosly and error and cut corners. Secondly, Heyou's welded mesh with ribbed can save 30% of the steel rebar dosage when you use it in your project. Thirdly, Heyou's welded mesh with ribbed can reduce 50%-70% times, accelerate the construction progress and shorten the construction period. Last Heyou's welded mesh with ribbed cut down 5%-10% of construction costs, it has considerable economic benefit. Therefore, choose heyou's welded mesh with ribbed is a right way.
