C5 / C6 / C7 / C8 / C9 / C10 / C11 / C12 / C14 / C16 steel rebar welded mesh
Heyou Wire Mesh Factory is a professional manufacturer specializing in steel rebar welded mesh. We produce high-quality mesh products in various specificat...
PRODUCT DESCRIPTION
C5 / C6 / C7 / C8 / C9 / C10 / C11 / C12 / C14 / C16 steel rebar welded mesh
Heyou wire mesh factory is a professional manufacturer for C5 / C6 / C7 / C8 / C9 / C10 / C11 / C12 / C14 / C16 steel rebar welded mesh of which material is Q195, CRB550; CRB600H, Q235, HPB235, HPB300 and HRB400. all of the material, heyou buy them form professional steel factory, which can guarantee the quality of steel rebar welded mesh.
The productive process of steel rebar welded mesh: first, required wire is drawing wire from wire rod; then worker staightening and cutting what we need the length; final the workers accord to required specification to welded the mesh.
Rebar Welded Wire Mesh: High-Strength Solutions for Concrete Reinforcement
Rebar welded wire mesh is a highly versatile and durable solution used extensively in concrete reinforcement for construction projects. Compliant with Chinese Standard GB/T14993-2010, our rebar mesh products ensure excellent performance and long-lasting reliability in demanding environments.
Key Features of Rebar Welded Wire Mesh
High-Strength Steel Construction: Manufactured from high-quality rebar, ensuring superior tensile strength and durability.
Accurate Welded Structure: Precise welding techniques guarantee uniform spacing, enhancing load distribution and bonding with concrete.
Customizable Specifications: Available in various sizes and diameters to meet diverse project requirements.
Specifications: Rebar Welded Wire Mesh
We provide rebar welded wire mesh in multiple grades and sizes, including C5, C6, C7, C8, C9, C10, C11, C12, C14, and C16, all meeting the strict requirements of GB/T14993-2010 standards.
The steel rebar welded mesh's production process is simple, therefore we must control the source of raw material in order to ensure the quality of products.

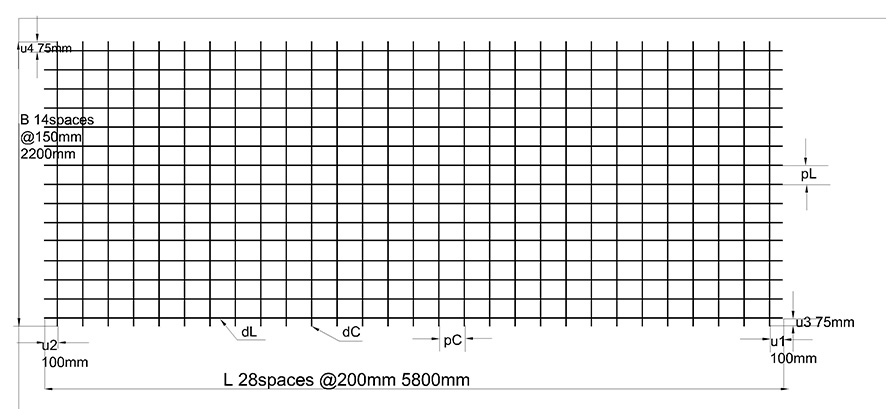

The Skatch of steel rebar welded mesh for C5 / C6 / C7 / C8 / C9 / C10 / C11 / C12 / C14 / C16:
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
The C5 / C6 / C7 / C8 / C9 / C10 / C11 / C12 / C14 / C16 steel rebar welded mesh specification as below:
| steel rebar welded mesh | |||||||
| Mesh model | longitudinal reinforcement | transverse reinforcement | Weight (kg / m2) | ||||
| dL (mm) | pL (mm) | area per meter ( mm2/m) | dC (mm) | pC (mm) | area per meter ( mm2 / m ) | ||
| C16 | 16 | 150 | 1341 | 12 | 200 | 566 | 14.98 |
| C14 | 14 | 150 | 1027 | 12 | 200 | 566 | 12.51 |
| C12 | 12 | 150 | 754 | 12 | 200 | 566 | 10.36 |
| C11 | 11 | 150 | 634 | 11 | 200 | 475 | 8.7 |
| C10 | 10 | 150 | 523 | 10 | 200 | 393 | 7.19 |
| C9 | 9 | 150 | 423 | 9 | 200 | 318 | 5.82 |
| C8 | 8 | 150 | 335 | 8 | 200 | 252 | 4.61 |
| C7 | 7 | 150 | 257 | 7 | 200 | 193 | 3.53 |
| C6 | 6 | 150 | 189 | 6 | 200 | 142 | 2.6 |
| C5 | 5 | 150 | 131 | 5 | 200 | 98 | 1.8 |
Applications of Steel Rebar Welded Mesh
Our steel rebar welded mesh is used extensively in various construction projects. It is ideal for reinforcing concrete structures, ensuring enhanced strength and stability. Common applications include:
Reinforced concrete slabs and walls: Used to provide internal support and prevent cracking in concrete.
Construction of highways, bridges, and tunnels: Helps in reinforcing large-scale infrastructure projects.
Industrial building foundations: Provides a solid foundation for heavy industrial applications.
Road and railway construction: Used in the construction of durable, long-lasting roads and railway beds.
Benefits of Using Rebar Welded Wire Mesh
Strength and Durability: Offers exceptional tensile strength, resisting heavy loads and environmental stress.
Time-Saving Installation: Pre-fabricated panels reduce on-site labor and accelerate construction timelines.
Cost-Effective: Minimizes material waste while maintaining structural integrity.
Versatility: Customizable to suit specific project dimensions and requirements.
Why Choose Our Steel Rebar Welded Mesh?
High Quality Materials: We use high-quality raw materials like Q195, CRB550, CRB600H, and HRB400 steel to ensure durability and performance.
Customized Specifications: Our steel rebar welded mesh is available in a wide range of specifications, including C5, C6, C7, C8, C9, C10, C11, C12, C14, and C16, making it suitable for a variety of construction needs.
Reliable Production Process: From wire drawing to welding, we maintain strict quality control throughout the production process to deliver a superior product.
Competitive Pricing: With our efficient manufacturing and sourcing process, we offer competitive pricing without compromising quality.
Contact Us Today!
If you are looking for reliable steel rebar welded mesh for your construction needs, Heyou Wire Mesh Factory is your trusted supplier. Contact us for inquiries, pricing, and customization options.
