Strip Foundation mesh reinforcement A393
Strip foundation mesh is used on strip foundation, of which stocks size in 800mm x 4.8m and 600mm x 4.8m. Heyou wire mesh has a large number of strip foundation mesh stock whi...
PRODUCT DESCRIPTION

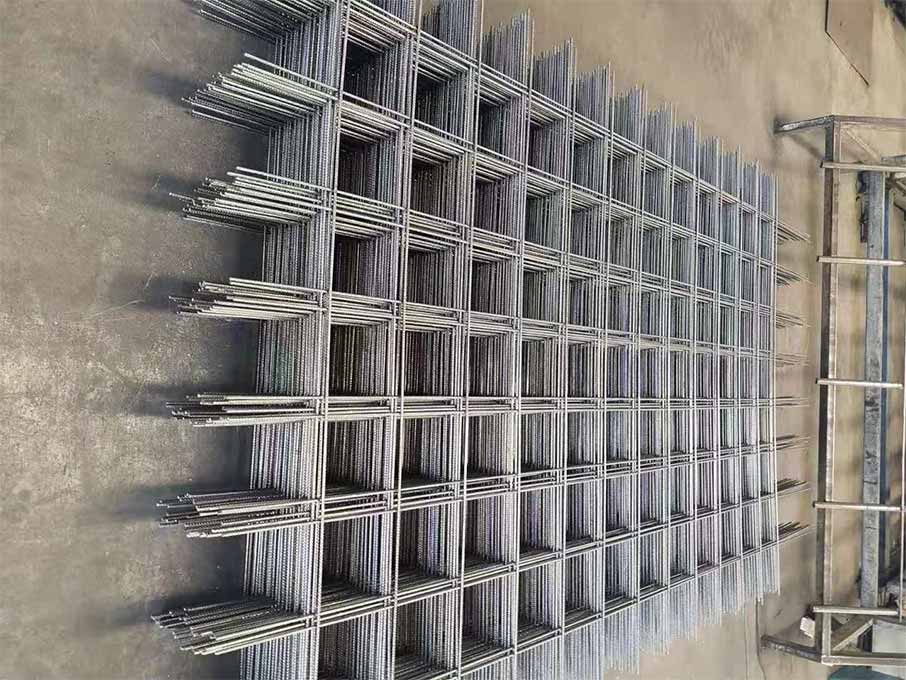

Strip foundation mesh is used on strip foundation, of which stocks size in 800mm x 4.8m and 600mm x 4.8m. Heyou wire mesh has a large number of strip foundation mesh stock which is fit for meeting the requirements for most British domestic house.
Strip foundation mesh was made by heyou wire mesh factory conformance standard BS4483: 2005 or BS8666:2000. B500A, B500B as a common material to be formed of strip foundation mesh. We have lots of stocks of strip foundation mesh for type A393.
The skatch of strip foundation mesh as below:
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars PC=Pitch of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars u3=Overhang of transverse bars |
The specification of strip foundation mesh as below:
| MESH TYPE | STEEL GRADE | Ø (mm) | DIMENSIONS (mm) | CENTERS (mm) | SHEET | BUNDLE | NL | NC | OVERHANGS (mm) | ||||||||
| dL | dC | L | B | Pl | Pc | kg/ m2 | kg/ Sheet | Sheets / Bundle | kg / Bundle | u1 | u2 | u3 | u4 | ||||
| A393 | B 500 B | 10 | 10 | 4800 | 800 | 200 | 200 | 6.16 | 23.20 | 20 | 464 | 4 | 23 | 200 | 200 | 100 | 100 |
| A393 | B 500 B | 10 | 10 | 4800 | 600 | 200 | 200 | 6.16 | 17.40 | 20 | 348 | 3 | 23 | 200 | 200 | 100 | 100 |
| A393 | B 500 B | 10 | 10 | 4800 | 800 | 200 | 200 | 6.16 | 23.70 | 20 | 474 | 4 | 24 | 100 | 100 | 100 | 100 |
| A393 | B 500 B | 10 | 10 | 4800 | 600 | 200 | 200 | 6.16 | 17.77 | 20 | 355 | 3 | 24 | 100 | 100 | 100 | 100 |
The advantage of strip foundation mesh reinforcement in application as below:
1. No need cutting on site
2. Easy to use on site
3. Convenient storage on site
4. Transportation safty and easily
5. safe operation
Why choose heyou wire mesh factory as a cooperator?
Nine reasons to choose us:
 |  |  |

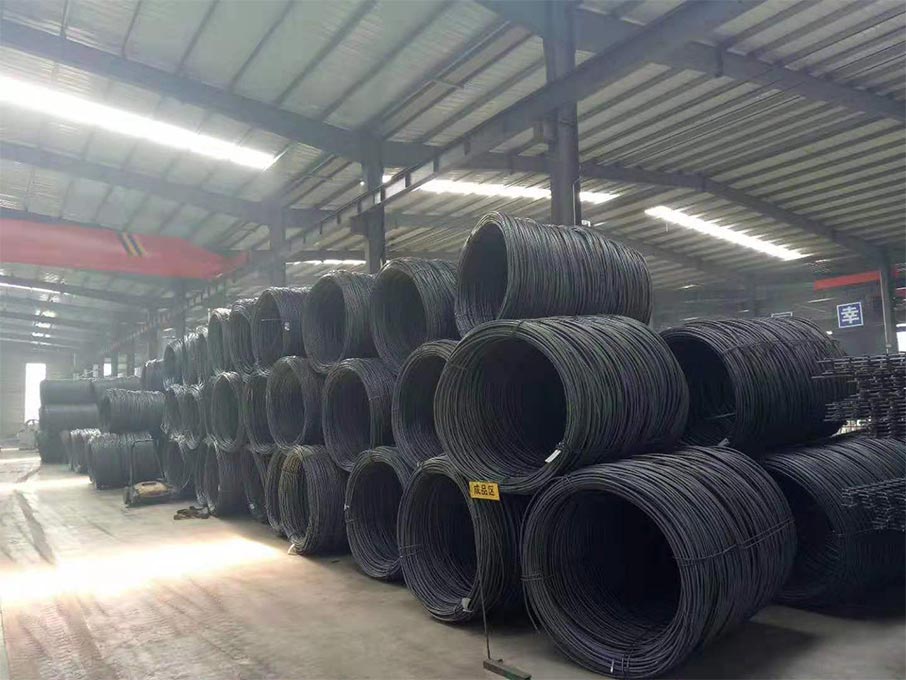

| 1. Real manufacturer | 2. High qulity raw material | 3. Advance production technology |
 |  |  |

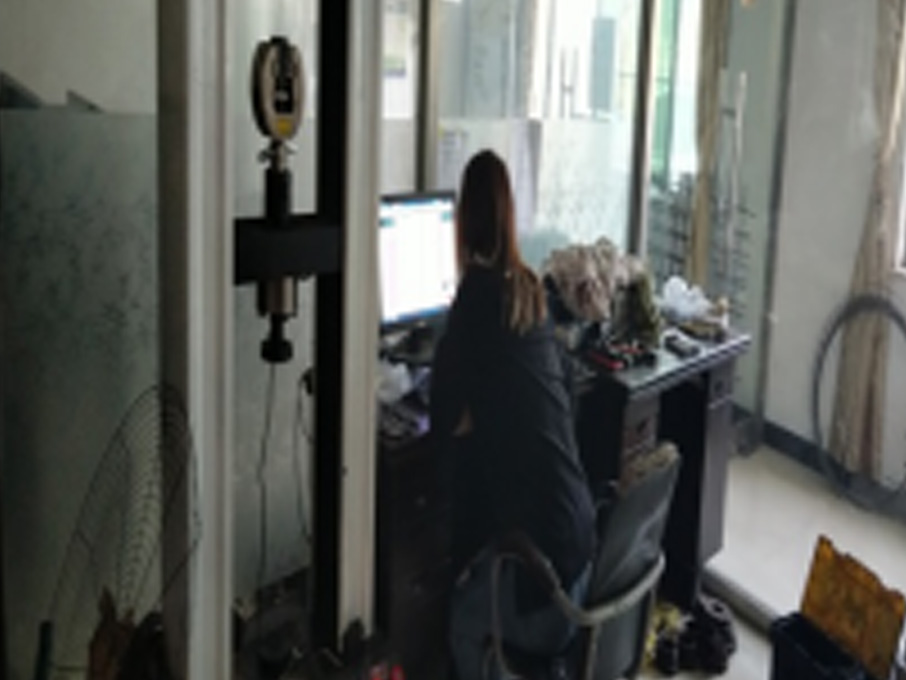

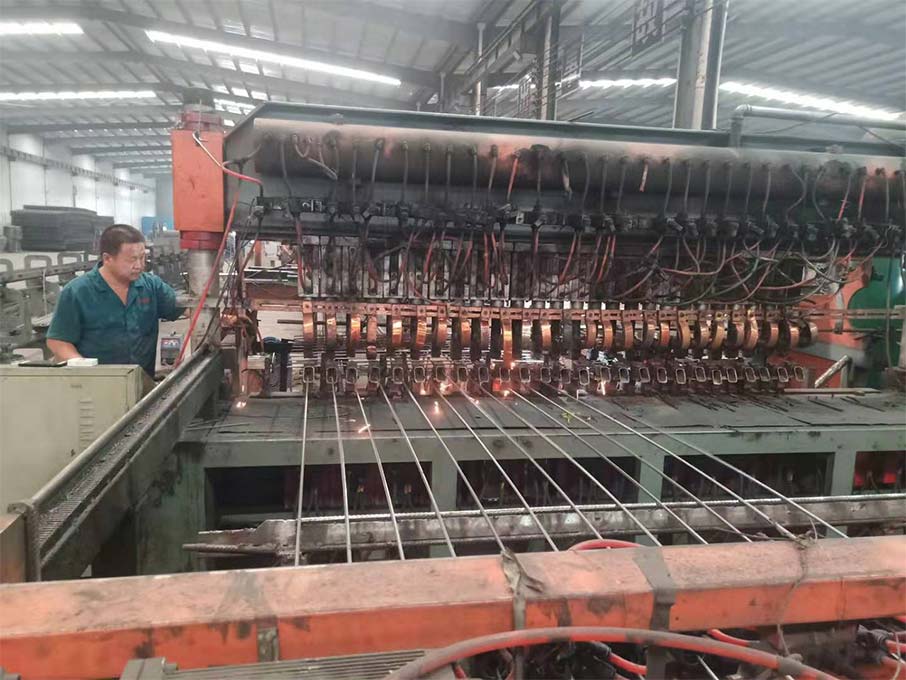

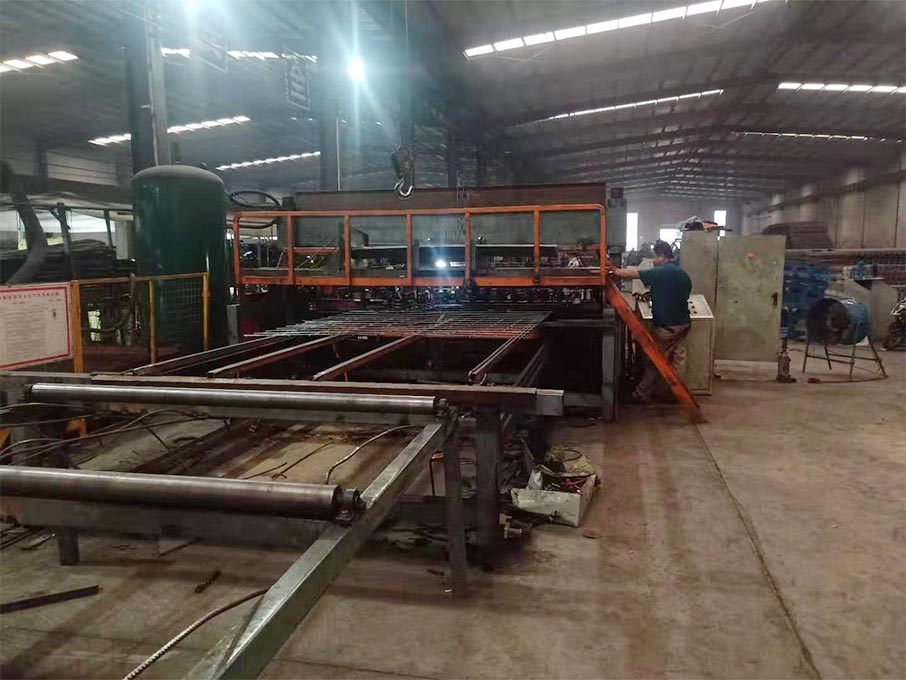

| 4. Aotomatich electric resistance machine | 5. Strictly production management system | 6. Completely set of QC system |
 |  |  |

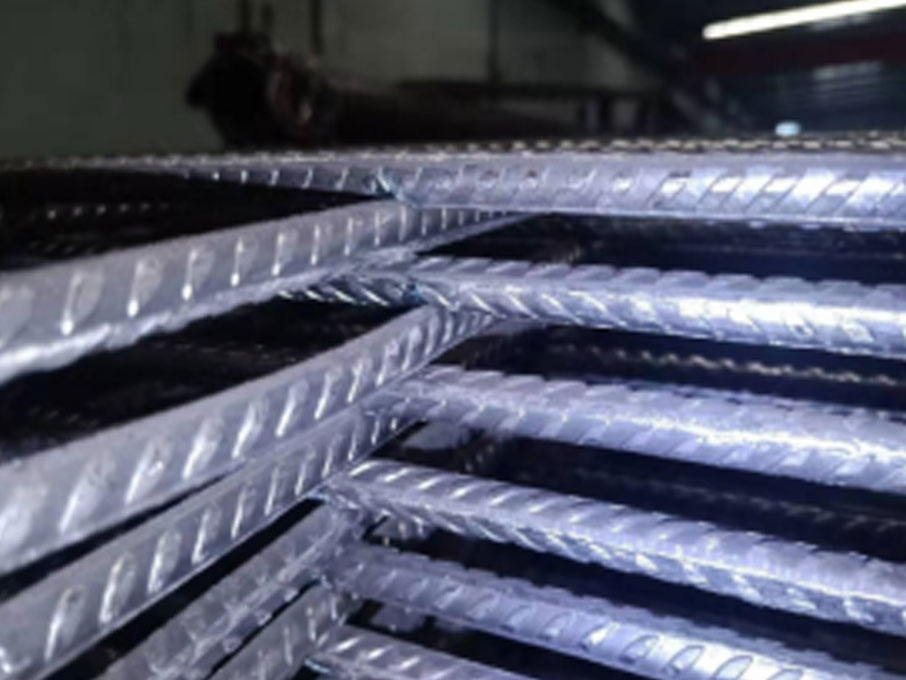

| 7. weld joint fimlyclearly and visible indentation | 8. mesh surface plain and appearnace beautiful | 9. products anti-corrosion and long-life using |
Choose Heyou wire mesh factory is your best choice.
