Continuous highcharis / lattice grid standard BS4482
Continuous highcharis is a supporting fabric which used on ground floor slabs and spacing fabric in walls. Heyou wire mesh factory supply the standard length is 2m. the height...
PRODUCT DESCRIPTION

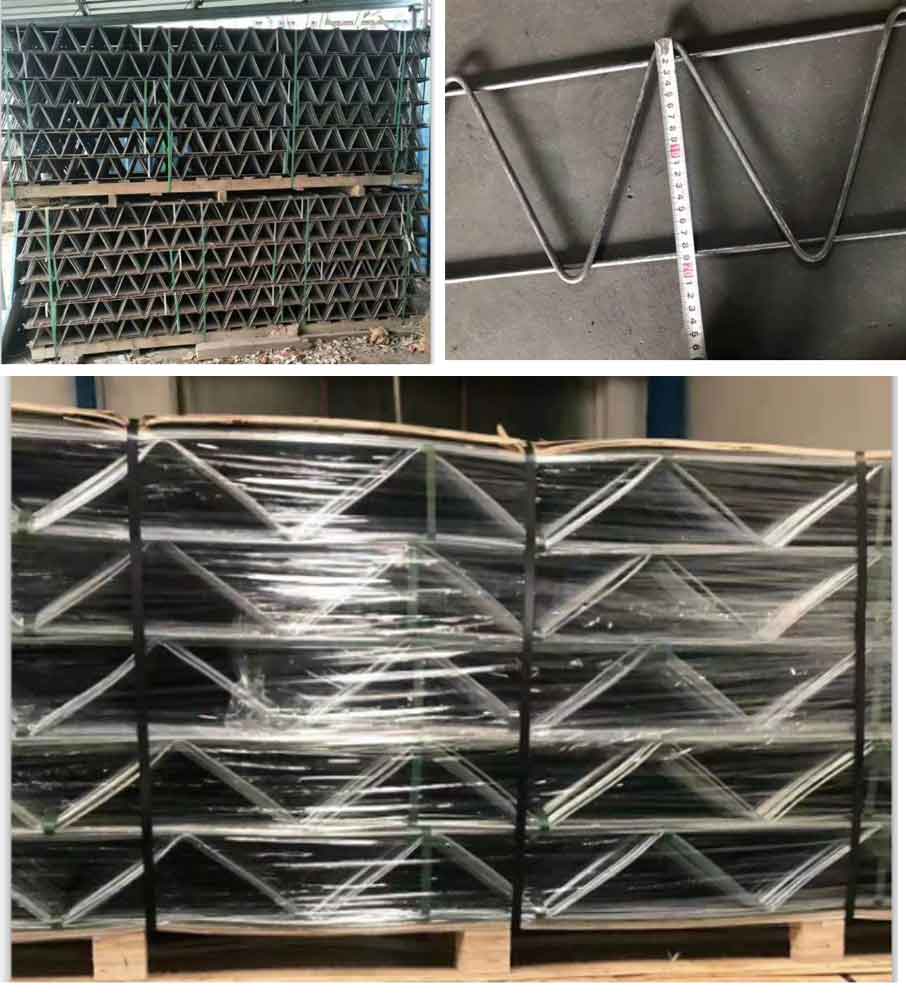

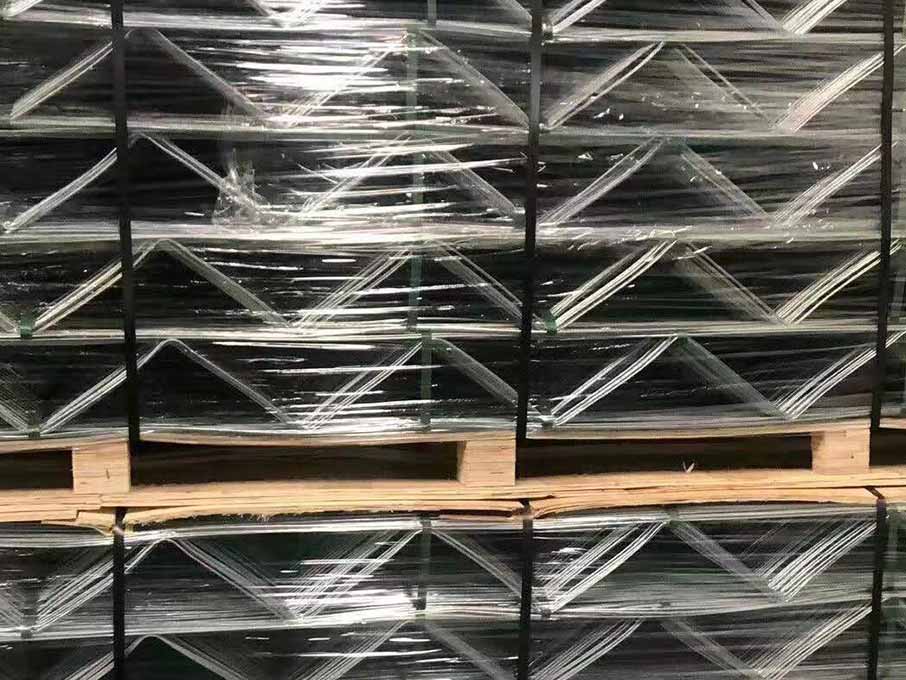

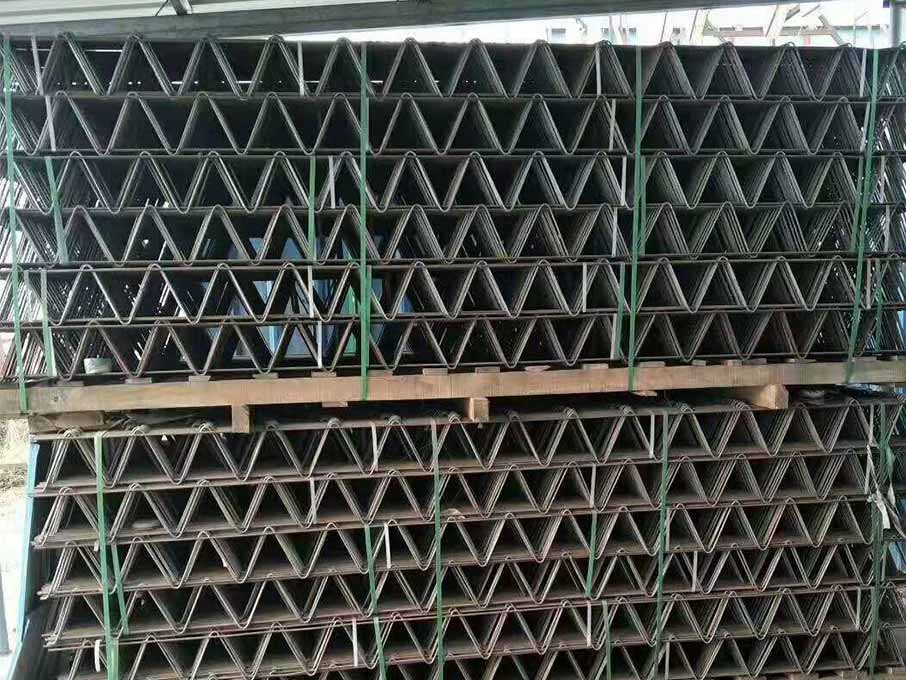

Continuous highcharis is a supporting fabric which used on ground floor slabs and spacing fabric in walls. Heyou wire mesh factory supply the standard length is 2m. the heights is from 50mm up to 280mm. We can produce the length from 1m to 6m.
The normal continuous highcharis specification as below:
| Reference | Height mm | Length m |
| CHL50 | 50 | 2 |
| CHL60 | 60 | 2 |
| CHL75 | 75 | 2 |
| CHL80 | 80 | 2 |
| CHL90 | 90 | 2 |
| CHL105 | 105 | 2 |
| CHL120 | 120 | 2 |
| CHL135 | 135 | 2 |
| CHL150 | 150 | 2 |
| CHL165 | 165 | 2 |
| CHL180 | 180 | 2 |
| CHL200 | 200 | 2 |
| CHL230 | 230 | 2 |
| CHL250 | 250 | 2 |
| CHL280 | 280 | 2 |
Usage:
Per 3 square meter use a piece of continuous chairmesh length 2m.
