SL51.5/ SL41.5 construction reinforcement mesh by AS-NZS 4671-2001 standard

Construction reinforcement mesh was made by plain steel wire. It main used on building construction complied with standard AS NZS 4671-2001.

The material is 250N, 500N, 500L, 300E, 500E, the mesh size is 150x150mm, wire diameter is 5.3mm and 4.0mm and the overhang length is in both sides. These specificate is very pouplar in New Zealand civil engineering field.

Features of construction reinforcement mesh

1. high quality raw material

2. electric resistance welding machine made it which has firmly solder join, size precision,and appearance good-looking

3. Professional management team

4. Complete QC rules and regulations

5. A full of laboratory testing instruments

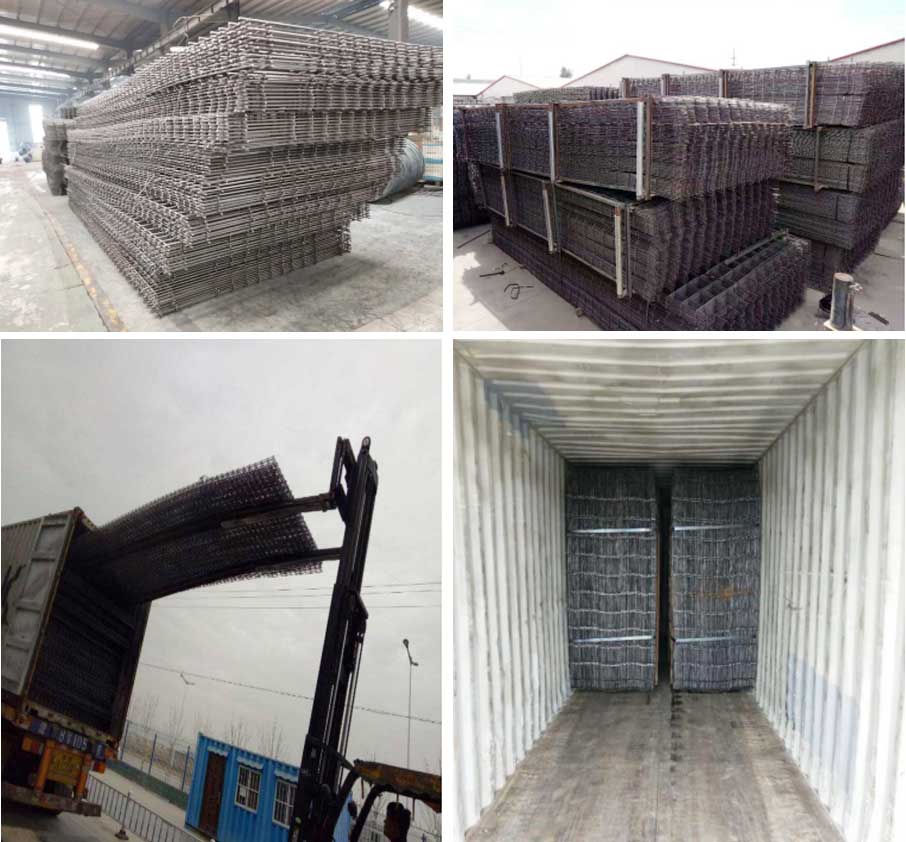

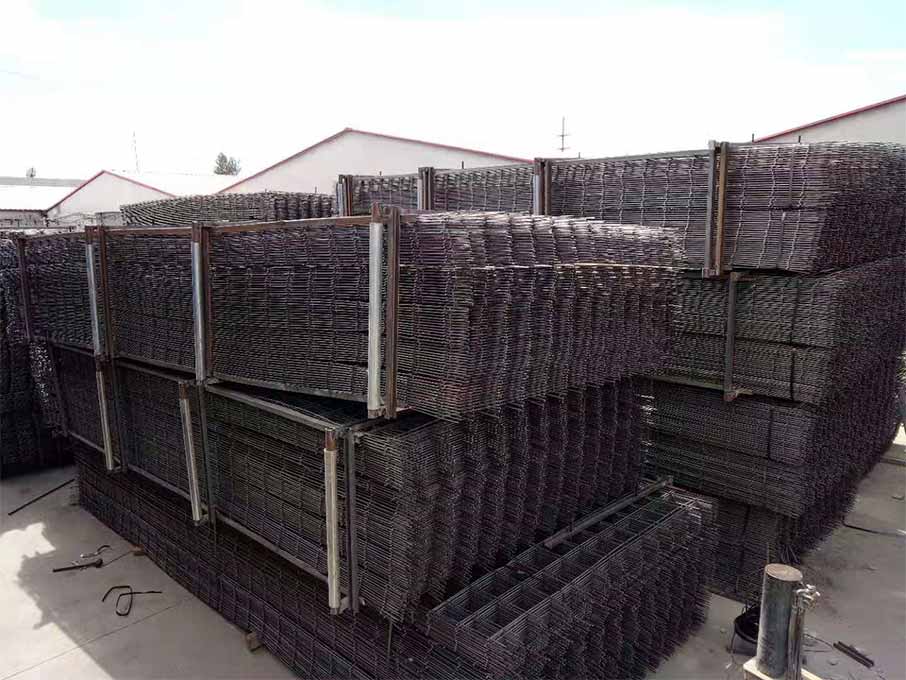

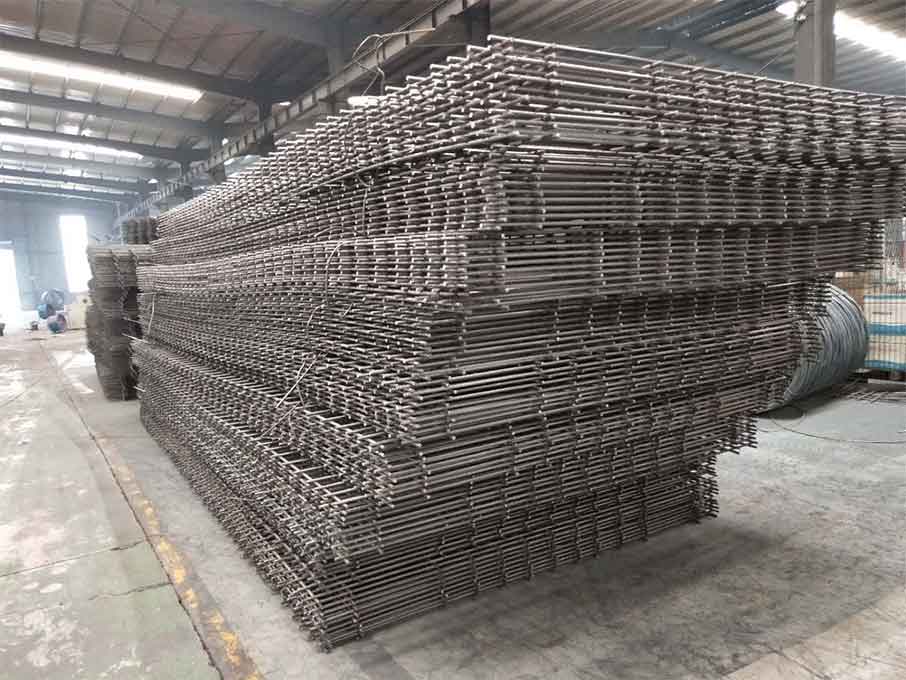

Packing and shipment of construction reinforcement mesh by AS-NZS 4671-2001 standard

Advantage of construction reinforcement mesh by AS-NZS 4671-2001 standard

1. Save 30% of steel bar dosages

2. Reduce 50%-70% work time, improve construction progress and shorten construction period.

3. Cut down 5%-10% construction cost

4. Used widely,it has a good market development prospects.

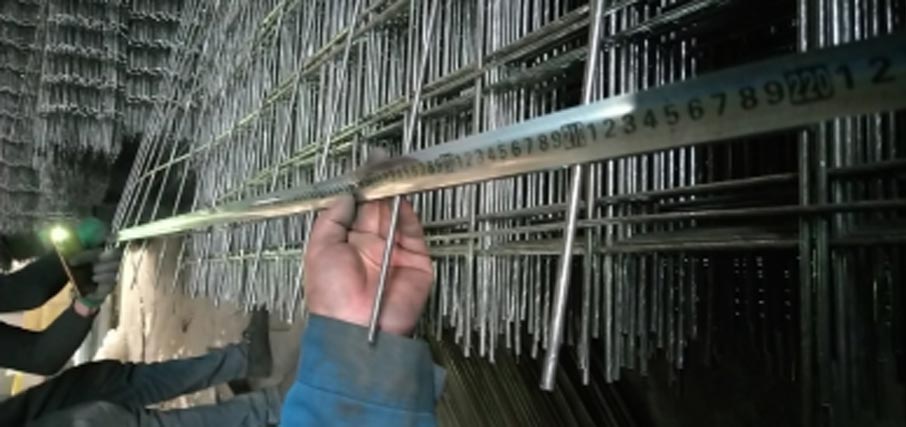

How can we measure our construction reinforcement mesh

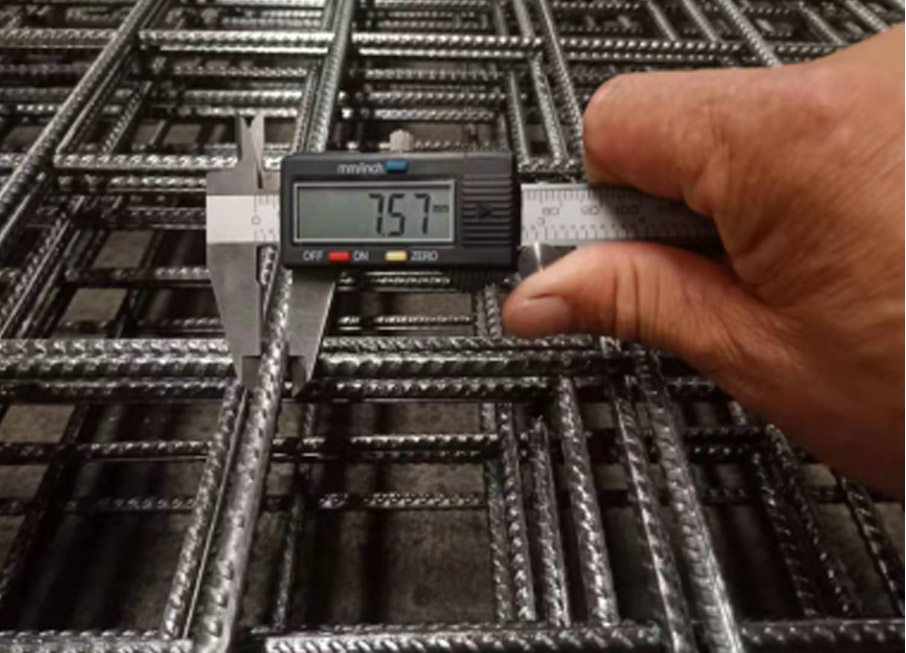

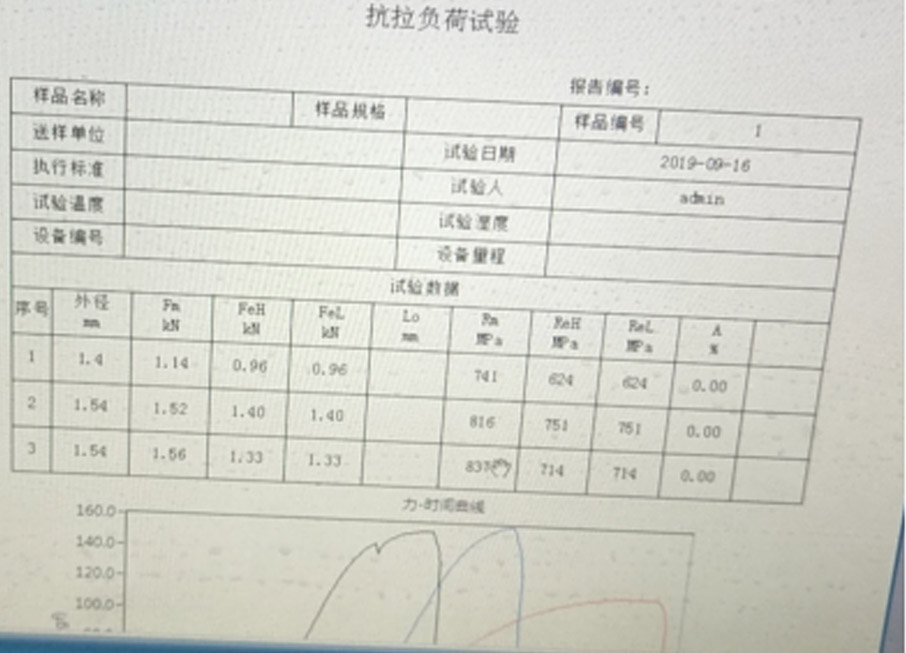

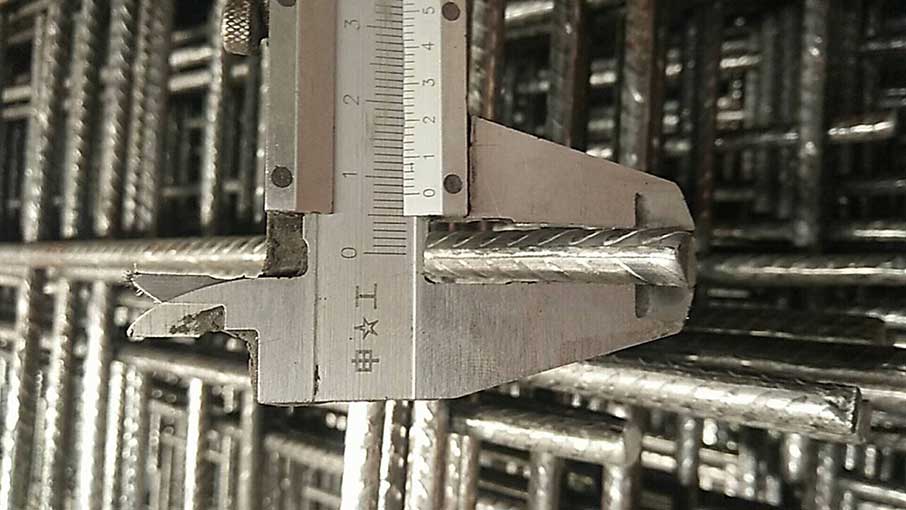

Tensile stregth test of construction reinforcement mesh as per contract	Wire diameter of construction reinforcement mesh messured as per contract

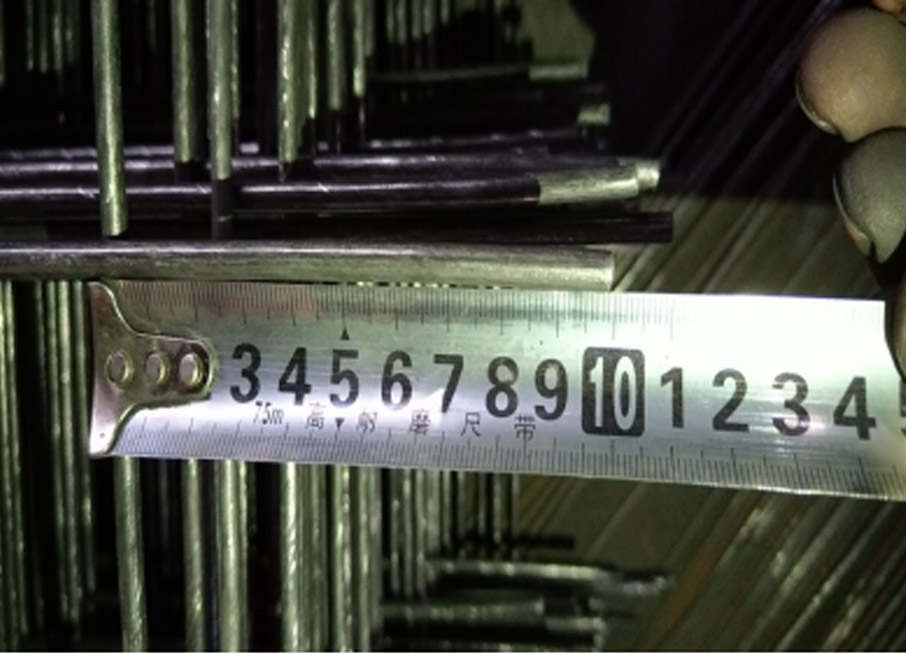

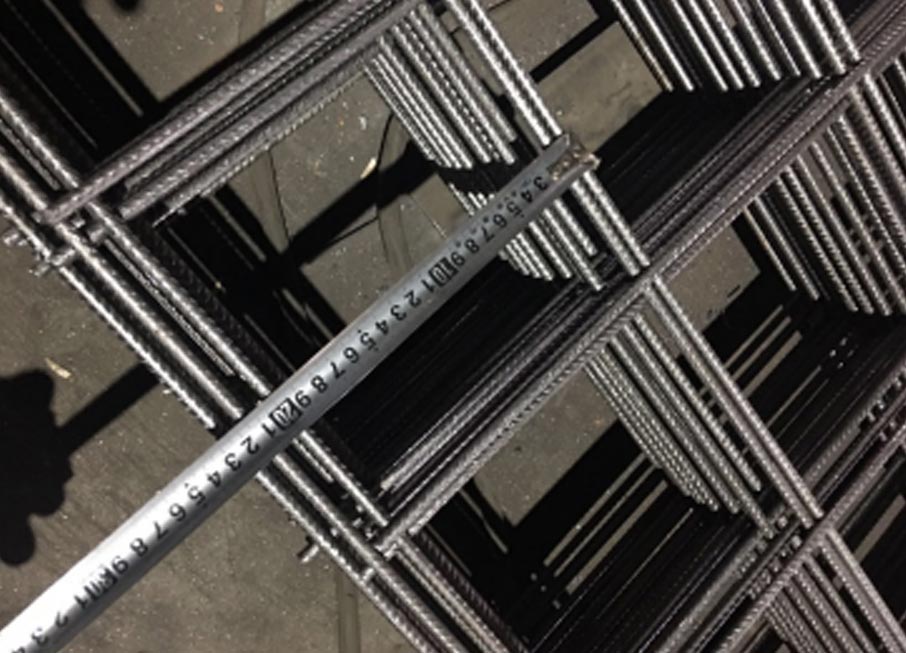

Overhang of construction reinforcement mesh messured	Mesh spaces of construction reinforcement mesh messured,

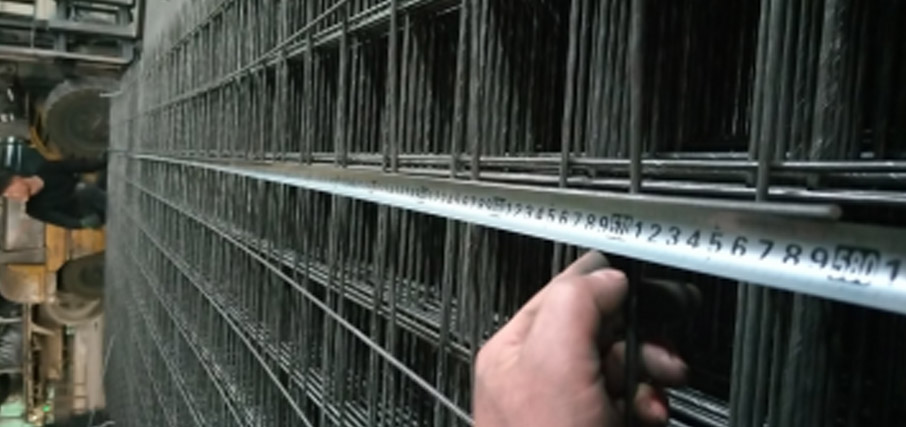

Width of construction reinforcement mesh messured as per contract	Lengh of construction reinforcement mesh messured as per contract

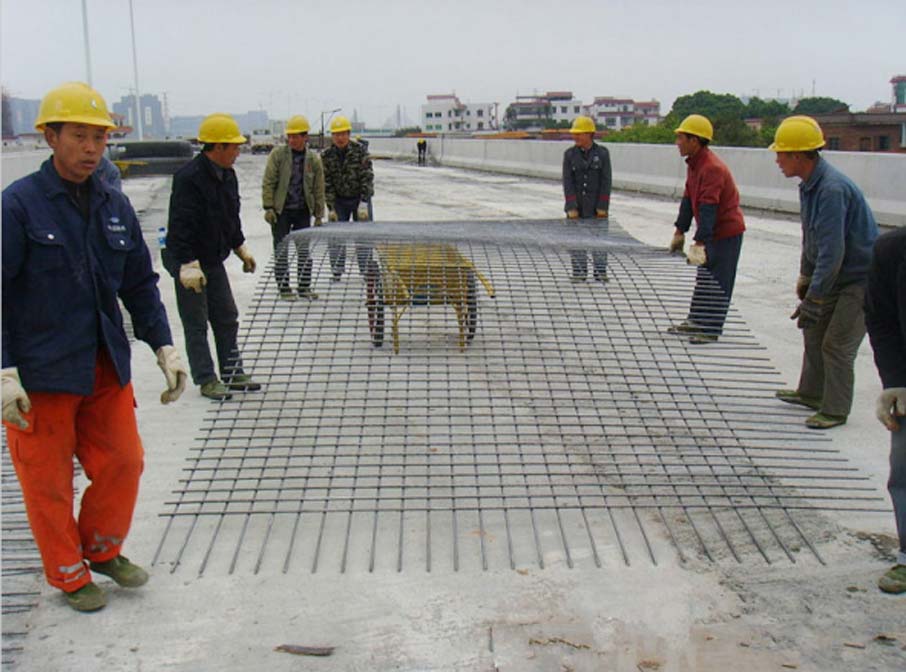

Application of construction reinforcement mesh

building construction,highway road reinforcement,bridge support,tunnel reinforced,mine and coal reinfocing

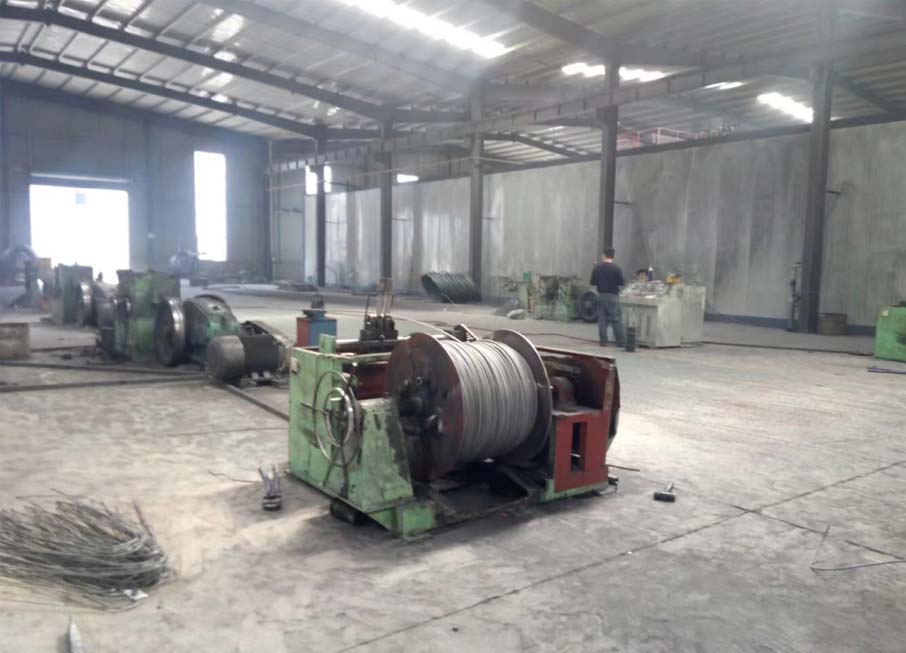

The production process of construction reinforcement mesh

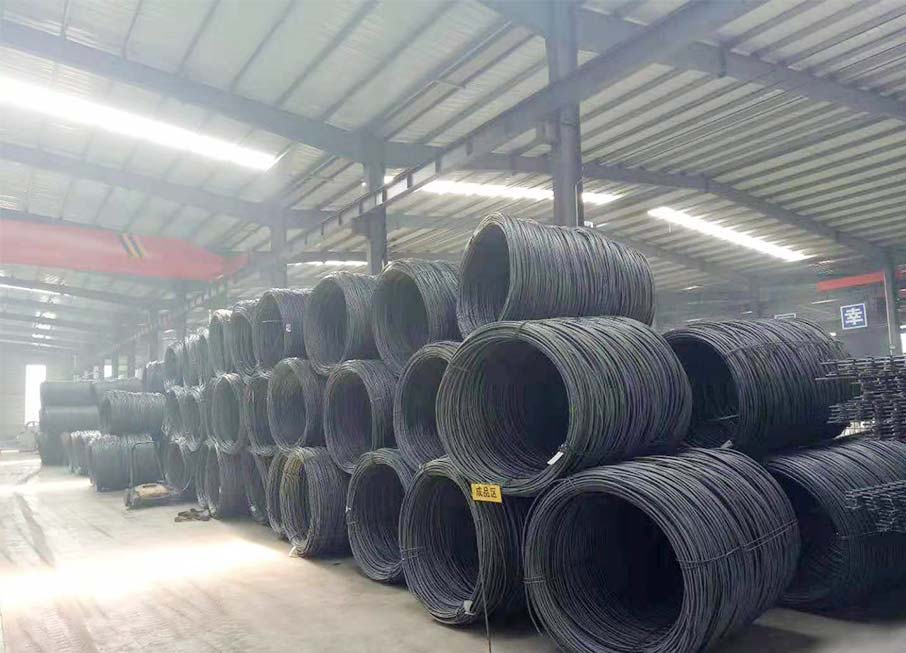

Firstly, purchase raw material and inspection
Secondly, drawn wire to required wire diameter, and measure it by micrometer

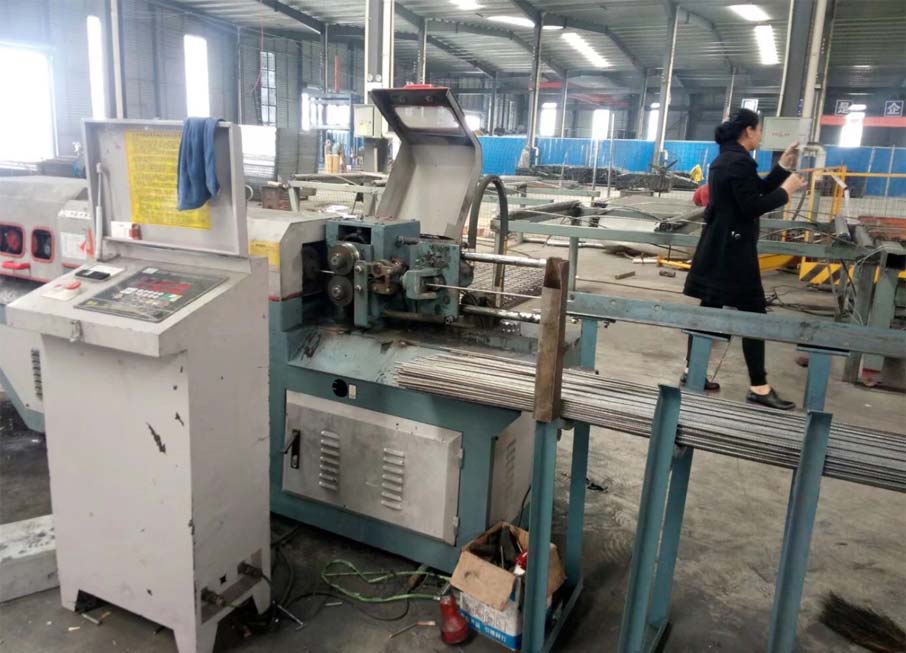

Thirdly, straightened and cut

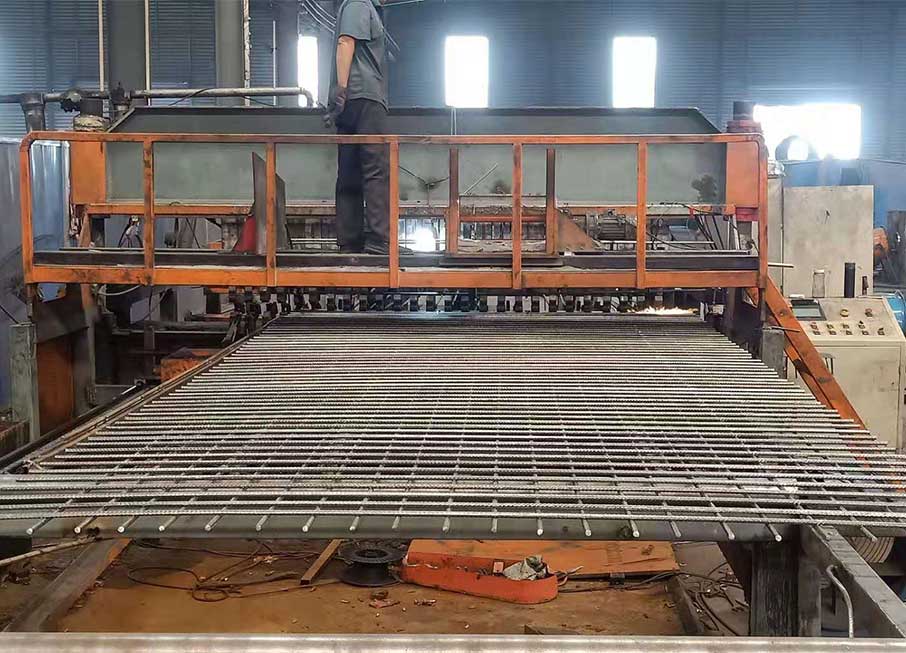

Fourthly, welded on the machine to mesh panel

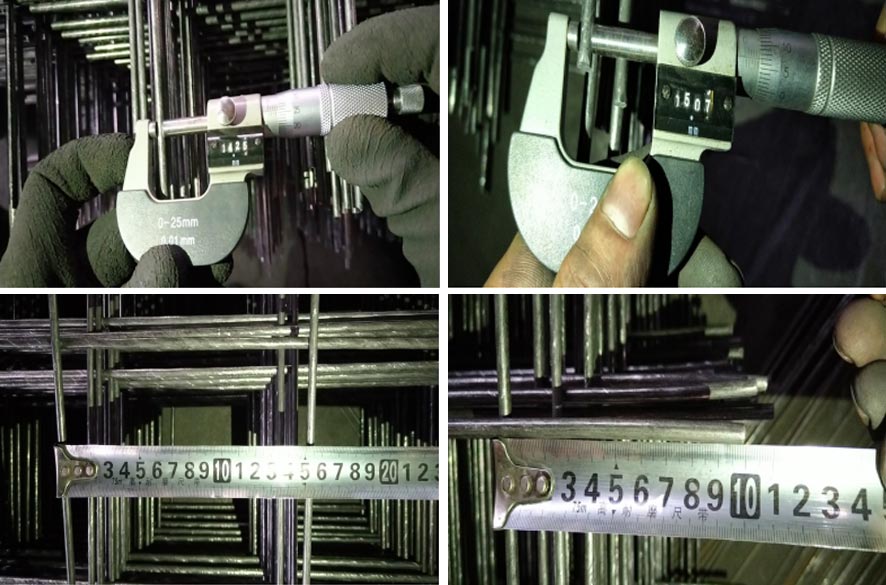

Fifthly, inspection by micrometer, vernier caliper, steel tape and laboratory testing

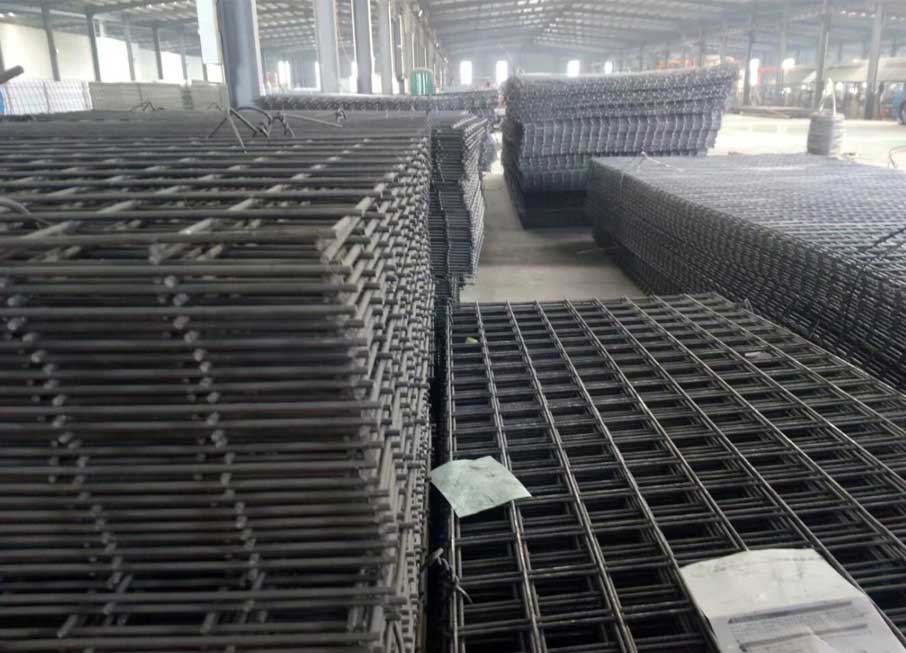

Finally, Storage and shipment

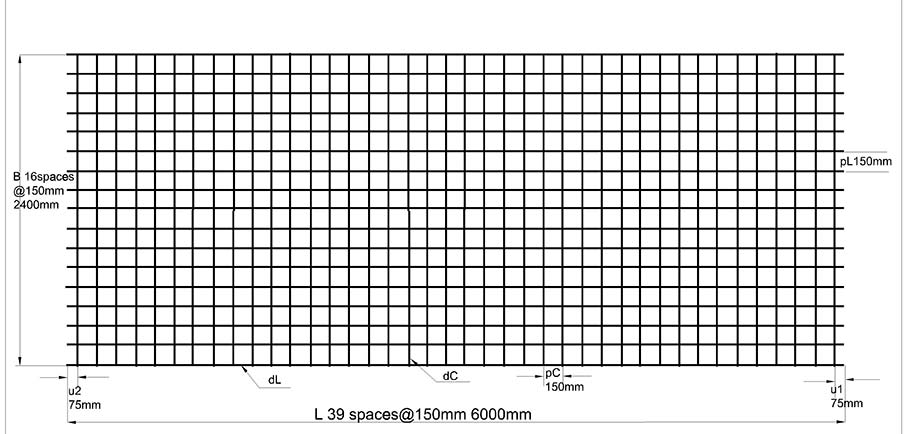

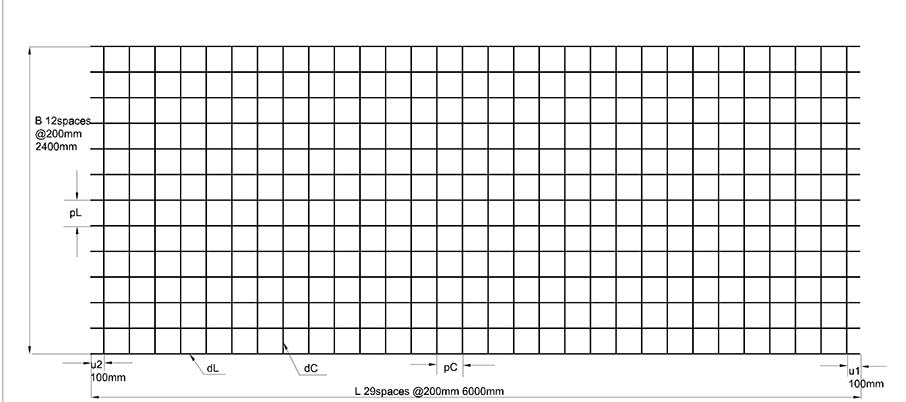

The specification of construction reinforcement mesh

Concrete Reinforcing Mesh Specification
Mesh Type and reference number	Longitudinal bars		Cross-bars		Mass for 6x2.4m sheets		Cross-sectional area/m width
	No. x dia., mm	Pitch, @mm	No. x dia., mm	Pitch, @mm	Unit area, kg/sqm	Sheet, kg	Long' l bars, sqmm/m	Cross bars, sqmm/m
structural
SE92	13 X9.0	200	30 X9.0	200	5.0	75	318	318
SE82	13 X8.0	200	30 X8.0	200	3.9	59	251	251
SE72	13 X7.0	200	30 X7.0	200	3.0	45	192	192
SE62	13 X6.0	200	30 X6.0	200	2.2	33	141	141
Non-structural
SL51.5	17 X5.3	150	40 X5.3	150	2.2	32	147	147
SL41.5	17 X4.0	150	40 X4.0	150	1.3	19	84	84

Heyou Wire Mesh was established in 2009 year, which is a professional manufactory for reinforcement mesh.

If you want to know more about our product details, please contact us and look forward to cooperating with you.
